Thermo Scientific™

SC100 Immersion Circulators

Catalog number: 152-0011
Thermo Scientific™

SC100 Immersion Circulators

Catalog number: 152-0011

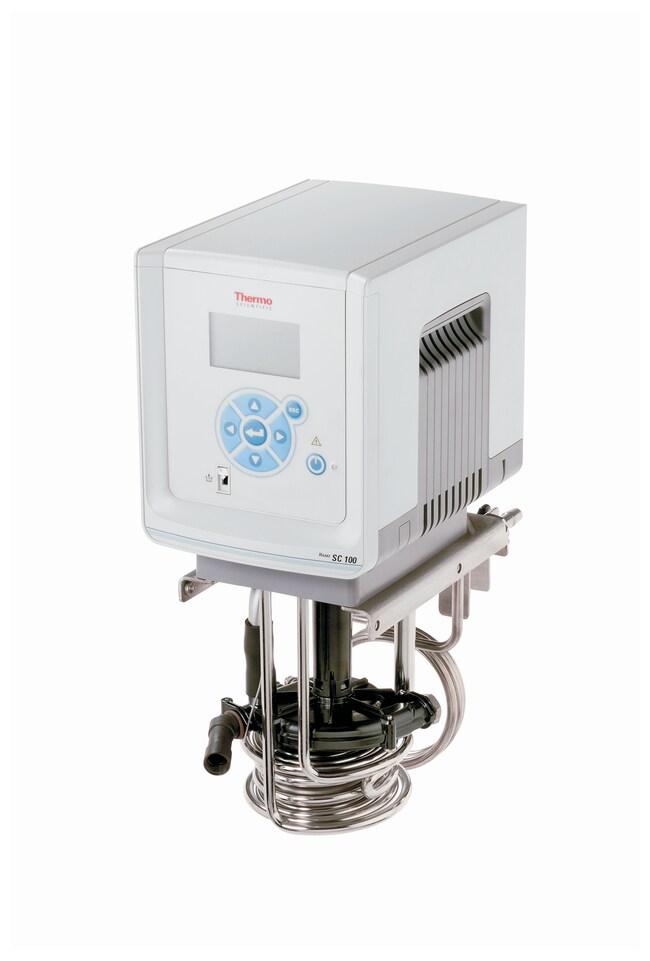

Maintain a temperature from 13° to 100°C with the Thermo Scientific™ SC100 Immersion Calculator, one of the basic models in this generation of superior quality thermostats. Features include an enhanced digital display and easy-to-use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.


Catalog Number
152-0011
Unit Size
Each
Model
SC100 with clamp
Voltage
230 V
Frequency
50 Hz
Price (USD)
Availability
-
Full specifications
Quantity
-
DescriptionWith clamp; 230V/50Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range-28°C to +100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100 with clamp
Safety Class1/NFL
Temperature (Metric) Maximum100°C
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements230 V 50 Hz
Voltage230 V
Frequency50 Hz
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC100
Voltage
230 V
Frequency
50 Hz
Price (USD)
Availability
-
Full specifications
Quantity
-
Description230V/50Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements230 V 50 Hz
Voltage230 V
Frequency50 Hz
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC100
Voltage
100 V
Frequency
50/60 Hz
Price (USD)
Availability
-
Full specifications
Quantity
-
Description100V/50-60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements100 V 50/60 Hz
Voltage100 V
Frequency50/60 Hz
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC100
Voltage
115 V
Frequency
60 Hz
Price (USD)
Availability
-
Full specifications
Quantity
-
Description115V/60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements115 V 60 Hz
Voltage115 V
Frequency60 Hz
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC100 with clamp
Voltage
100 V
Frequency
50/60 Hz
Price (USD)
Availability
-
Full specifications
Quantity
-
DescriptionWith clamp; 100V/50-60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100 with clamp
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements100 V 50/60 Hz
Voltage100 V
Frequency50/60 Hz
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC100 with clamp
Voltage
115 V
Frequency
60 Hz
Price (USD)
Availability
-
Full specifications
Quantity
DescriptionWith clamp; 115V/60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100 with clamp
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements115 V 60 Hz
Voltage115 V
Frequency60 Hz
Unit SizeEach
Showing 6 of 6
Catalog NumberSpecificationsUnit SizeModelVoltageFrequencyPrice (USD)AvailabilityQuantity
152-0011Full specifications
EachSC100 with clamp230 V50 HzRequest A Quote--
DescriptionWith clamp; 230V/50Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range-28°C to +100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100 with clamp
Safety Class1/NFL
Temperature (Metric) Maximum100°C
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements230 V 50 Hz
Voltage230 V
Frequency50 Hz
Unit SizeEach
152-0001Full specifications
EachSC100230 V50 HzRequest A Quote--
Description230V/50Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements230 V 50 Hz
Voltage230 V
Frequency50 Hz
Unit SizeEach
1520006Full specifications
EachSC100100 V50/60 HzRequest A Quote--
Description100V/50-60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements100 V 50/60 Hz
Voltage100 V
Frequency50/60 Hz
Unit SizeEach
1520008Full specifications
EachSC100115 V60 HzRequest A Quote--
Description115V/60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements115 V 60 Hz
Voltage115 V
Frequency60 Hz
Unit SizeEach
1520016Full specifications
EachSC100 with clamp100 V50/60 HzRequest A Quote--
DescriptionWith clamp; 100V/50-60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100 with clamp
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements100 V 50/60 Hz
Voltage100 V
Frequency50/60 Hz
Unit SizeEach
1520018Full specifications
EachSC100 with clamp115 V60 Hz
-
DescriptionWith clamp; 115V/60Hz
Certifications/ComplianceCE, CSA, UL, RoHS
Flow Rate17 L/min.
Temperature Range13°C to 100°C
Heating Capacity2 kW/1.2 kW
Max. Pressure300 mbar/4.35 psi
ModelSC100 with clamp
Safety Class1/NFL
Temperature Stability0.02°C
Dimensions (L x W x H)7.8 x 5.4 x 13.2 in. (19.9 x 13.8 x 33.6 cm)
Length (English)7.8 in.
Length (Metric)19.9 cm
Width (English)5.4 in.
Width (Metric)13.8 cm
Height (English)13.2 in.
Height (Metric)33.6 cm
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Electrical Requirements115 V 60 Hz
Voltage115 V
Frequency60 Hz
Unit SizeEach
Showing 6 of 6
Designed for ease-of-use and energy efficient with powerful pumping and heating capacities for closed loop applications.
  • Self-Tuning PID controller for optimized temperature control
  • 5 programmable set point temperatures
  • RTA (Real Temperature Adjustment) for calibration
  • Two levels of pump speed adjustment to increase flow or bath agitation
  • Three languages (English, German, French)
  • Change digital display resolution between 0.1 and 0.01 and between °C — °F — °K
  • Acoustic and optical alarm
  • Auto-Restart feature after power failure

Includes:8mm and 12mm hose barbs with clamp (–0016, -0018, –0011 only), pump plug for external circulation, 6ft. power cord.



  • Warranty varies by country, please contact us for details
