Thermo Scientific™

PC300 Immersion Circulators

Catalog number: 1590005
Thermo Scientific™

PC300 Immersion Circulators

Catalog number: 1590005

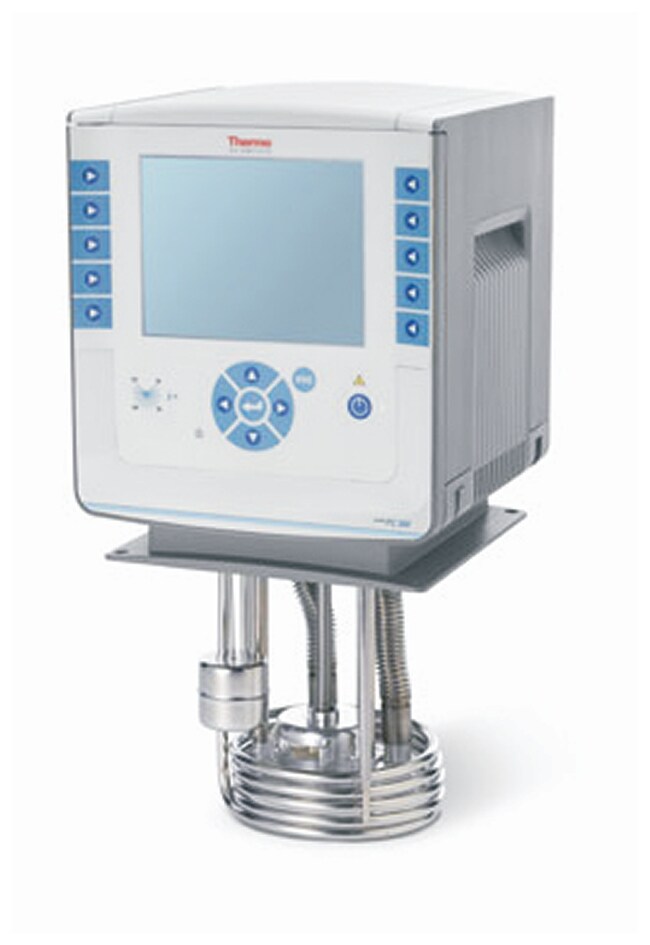

Thermo Scientific™ PC201 Immersion Circulators feature a 3.0Kw heater for faster time to temperature, an all stainless steel pump with ceramic rotors and offer extreme temperature performance ranging from -50° to +300°C. Features include an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.


Catalog Number
1590005
Unit Size
Each
Model
PC300
Voltage
200/230 V
Frequency
50/60 Hz
Price (USD)
Full specifications
Certifications/ComplianceCE marked, UL listed, CSA, RoHS
CommunicationsUSB
Flow Rate24 L/min.
Pump TypeForce Pump, Suction Pump
Temperature Range-50°C to +300°C
Heating Capacity3 kW
Max. Pressure500 mbar/8.12 psi
ModelPC300
Temperature (Metric) Maximum300°C
Temperature Stability0.01°C
Dimensions (L x W x H)9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1 cm)
Length (English)9.2 in.
Length (Metric)23.3 cm
Width (English)7.4 in.
Width (Metric)18.9 cm
Height (English)16.6 in.
Height (Metric)42.1 cm
Weight (English)10.4 lb.
Weight (Metric)4.7 kg
Electrical Requirements200/230 V 50/60 Hz
Voltage200/230 V
Frequency50/60 Hz
Unit SizeEach
Catalog Number
Unit Size
Each
Model
PC300 w/bridge
Voltage
200/230 V
Frequency
50/60 Hz
Price (USD)
Full specifications
Certifications/ComplianceCE marked, UL listed, CSA, RoHS
CommunicationsUSB
Flow Rate24 L/min.
Pump TypeForce Pump, Suction Pump
Temperature Range-50°C to +300°C
Heating Capacity3 kW
Max. Pressure500 mbar/8.12 psi
ModelPC300 w/bridge
Temperature (Metric) Maximum300°C
Temperature Stability0.01°C
Dimensions (L x W x H)9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1 cm)
Length (English)9.2 in.
Length (Metric)23.3 cm
Width (English)7.4 in.
Width (Metric)18.9 cm
Height (English)16.6 in.
Height (Metric)42.1 cm
Weight (English)10.4 lb.
Weight (Metric)4.7 kg
Electrical Requirements200/230 V 50/60 Hz
Voltage200/230 V
Frequency50/60 Hz
Unit SizeEach
Showing 2 of 2
Catalog NumberSpecificationsUnit SizeModelVoltageFrequencyPrice (USD)
1590005Full specifications
EachPC300200/230 V50/60 HzRequest A Quote
Certifications/ComplianceCE marked, UL listed, CSA, RoHS
CommunicationsUSB
Flow Rate24 L/min.
Pump TypeForce Pump, Suction Pump
Temperature Range-50°C to +300°C
Heating Capacity3 kW
Max. Pressure500 mbar/8.12 psi
ModelPC300
Temperature (Metric) Maximum300°C
Temperature Stability0.01°C
Dimensions (L x W x H)9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1 cm)
Length (English)9.2 in.
Length (Metric)23.3 cm
Width (English)7.4 in.
Width (Metric)18.9 cm
Height (English)16.6 in.
Height (Metric)42.1 cm
Weight (English)10.4 lb.
Weight (Metric)4.7 kg
Electrical Requirements200/230 V 50/60 Hz
Voltage200/230 V
Frequency50/60 Hz
Unit SizeEach
1590025Full specifications
EachPC300 w/bridge200/230 V50/60 HzRequest A Quote
Certifications/ComplianceCE marked, UL listed, CSA, RoHS
CommunicationsUSB
Flow Rate24 L/min.
Pump TypeForce Pump, Suction Pump
Temperature Range-50°C to +300°C
Heating Capacity3 kW
Max. Pressure500 mbar/8.12 psi
ModelPC300 w/bridge
Temperature (Metric) Maximum300°C
Temperature Stability0.01°C
Dimensions (L x W x H)9.2 x 7.4 x 16.6 in. (23.3 x 18.9 x 42.1 cm)
Length (English)9.2 in.
Length (Metric)23.3 cm
Width (English)7.4 in.
Width (Metric)18.9 cm
Height (English)16.6 in.
Height (Metric)42.1 cm
Weight (English)10.4 lb.
Weight (Metric)4.7 kg
Electrical Requirements200/230 V 50/60 Hz
Voltage200/230 V
Frequency50/60 Hz
Unit SizeEach
Showing 2 of 2
  • Max. temperature: 300°C
  • Temp. stability: 0.015
  • 3.0kW heater for faster time to temperature
  • All stainless-steel pump with ceramic rotors
  • Force/suction pump with 560mbar pressure and 24L/min flow
  • Heating capacity 1.2kW
  • External T control via PT100 sensor port
  • Application threshold alarms to safeguard experiments
  • Temperature high and low limits
  • Seven languages (English, German, French, Spanish, Italian, Chinese and Japanese)
  • Ten ramp programs with edit during run or pause
  • USB port for remote control
  • Real-time clock
  • Multifunction port connects
    • Booster pump (1 bar extra)
    • Booster heater (2kW extra)
    • Auto refill device
    • Magnetic/solenoid valve box (e.g. control tap-water cooling)

Ordering Information:

Includes 8mm and 12mm hose barbs with bridge (–0025 only), pump plug for external circulation, and 6ft. power cord.
