Thermo Scientific™

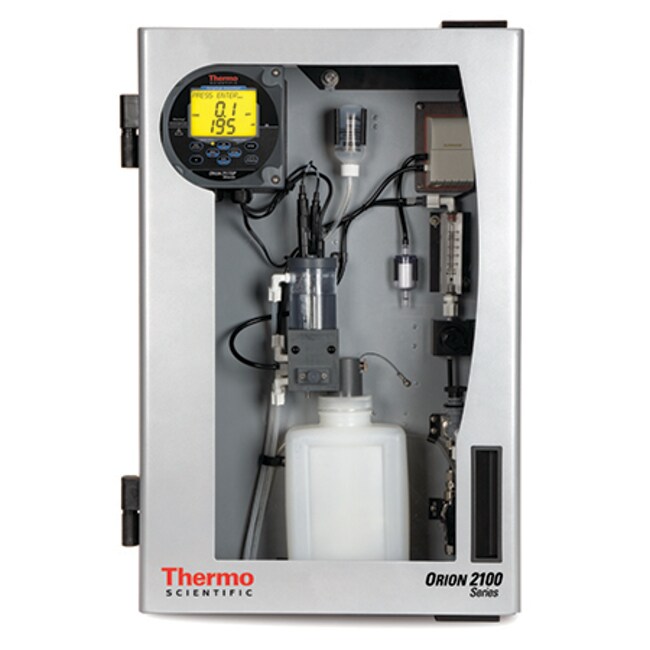

Orion™ 2117XP Chloride Analyzer

Catalog number: 2117XPG
Thermo Scientific™

Orion™ 2117XP Chloride Analyzer

Catalog number: 2117XPG
Detect chloride in real time with accurate and reliable results using the Thermo Scientific™ Orion™ 2117XP Chloride Analyzer. Early detection of chloride ingress from feedwater helps your plant maintain the optimal balance of water purification and peace of mind.

Catalog Number
2117XPG
Unit Size
Each
Description
2117XP Chloride Analyzer With Grab Smapler
Price (USD)
Full specifications
Current Loops2
Description2117XP Chloride Analyzer With Grab Smapler
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
Includes2117XP chloride analyzer with grab sampler, chloride electrode, reference electrode, ATC probe, chloride calibration standards kit, CD user guide and options kit
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
Catalog Number
Unit Size
Each
Description
2117XP Chloride Analyzer
Price (USD)
Full specifications
Current Loops2
Description2117XP Chloride Analyzer
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
IncludesInstrument Only Package
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
Catalog Number
Unit Size
Each
Description
2117XP Chloride Analyzer With Enclosure
Price (USD)
Full specifications
Current Loops2
Description2117XP Chloride Analyzer With Enclosure
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
IncludesWith Protective Enclosure Package
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
Catalog Number
Unit Size
Each
Description
2117XP Chloride Analyzer With Enclosure and Grab Smapler
Price (USD)
Full specifications
Current Loops2
Description2117XP Chloride Analyzer With Enclosure and Grab Smapler
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
Includes2117XP chloride analyzer with grab sampler, chloride electrode, enclosure, reference electrode, ATC probe, chloride calibration standards kit, CD user guide and options kit
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
Showing 4 of 4
Catalog NumberSpecificationsUnit SizeDescriptionPrice (USD)
2117XPGFull specifications
Each2117XP Chloride Analyzer With Grab SmaplerRequest A Quote
Current Loops2
Description2117XP Chloride Analyzer With Grab Smapler
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
Includes2117XP chloride analyzer with grab sampler, chloride electrode, reference electrode, ATC probe, chloride calibration standards kit, CD user guide and options kit
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
2117XPFull specifications
Each2117XP Chloride AnalyzerRequest A Quote
Current Loops2
Description2117XP Chloride Analyzer
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
IncludesInstrument Only Package
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
2117XPENFull specifications
Each2117XP Chloride Analyzer With EnclosureRequest A Quote
Current Loops2
Description2117XP Chloride Analyzer With Enclosure
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
IncludesWith Protective Enclosure Package
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
2117XPENGFull specifications
Each2117XP Chloride Analyzer With Enclosure and Grab SmaplerRequest A Quote
Current Loops2
Description2117XP Chloride Analyzer With Enclosure and Grab Smapler
Frequency0 to 60 Hz
Height (English)26 in.
Height (Metric)65 cm
Length (English)11 in.
Length (Metric)27 cm
Outputs0 to 20 mA; 4 to 20 mA
Voltage85 to 132 VAC; 170 to 264 VAC
Temperature (Metric) Operating5°C to 35°C
TypeChloride Analyzer
Accuracy±10% or 0.1 ppm, whichever is greater
Response Time95% within 2 minutes of injecting a standard solution
Width (English)17 in.
Width (Metric)45 cm
CalibrationDouble Known Addition
Enclosure RatingWaterproof; IP66; NEMA 4X
Flow Rate40mL/min.
Channels1
Communication DetailsModbus with Additional Module
Display TypeCustom backlit LCD with temperature, concentration, mV, error codes and menu driven prompts
Keypad TypeMembrane
Max. Relative Humidity5 to 95%, non-condensing
Mounting OptionsWall mount
Options for Channel 1Chloride
Options for Channel 2Optional ph/ORP or Conductivity
Relay Details3 Relay Outputs; Relay Load: 250VAC; 30VDC; 5A
Accuracy (mV)± (0.5 mV + 0.1%)
Accuracy (Temperature)±0.5°C
Alarm Output3
Amperage5A
Analog Outputs2, Galvanically Isolated
Case MaterialValox 364
Certifications/ComplianceCE, CSA, UL, FCC Class A limits
Detection Limits0.1ppm
Includes2117XP chloride analyzer with grab sampler, chloride electrode, enclosure, reference electrode, ATC probe, chloride calibration standards kit, CD user guide and options kit
Inlet Pressure8 to 100psig
Measurement Ranges0 to 10ppm
Sample Flow Rate40 mL/min nominal set by pressure regulator
Sample Inlet1/4 in. NPTF tube fitting
Sample Streams1
Dimensions (L x W x H)11 x 17 x 26 in. (27 x 45 x 65cm)
Unit SizeEach
Showing 4 of 4
Features:
  • Detection limit of 0.1ppm offers continuous chloride monitoring in wide variety of samples.
  • Protection against early breakthrough with sensitive, selective, reliable and verfiable measurements provides early detection of chloride in RO and boiler systems.
  • Fast and highly accurate calibration has you back online in minutes.
  • System holds calibration up to 60 days between reagent changes.
  • Long life solid state sensor technology offers stability and high performance.
  • Simple operation and no moving parts means only minimal maintenance is required.
  • Get repeatable and verifiable measurements at a glance using the large, user-friendly display.

2117XP Chloride Analyzer Ordering Information:

  • Annual Consumables Kit, Cat. No. 211750XP
  • Reagent, Cat. No. 182011
  • Diffusion Tubing, Cat. No. 181060
  • Calibration Kit, Cat. No. 2117XPCAL
  • Calibration Standards, Cat. No. 211740
  • Chloride Electrode, Cat. No. 100025
  • Reference Electrode, Cat. No. 100057
  • Reference Electrode Filling Solution, Cat. No. 100057F4

Figures

Frequently asked questions (FAQs)

Citations & References
