Thermo Scientific™

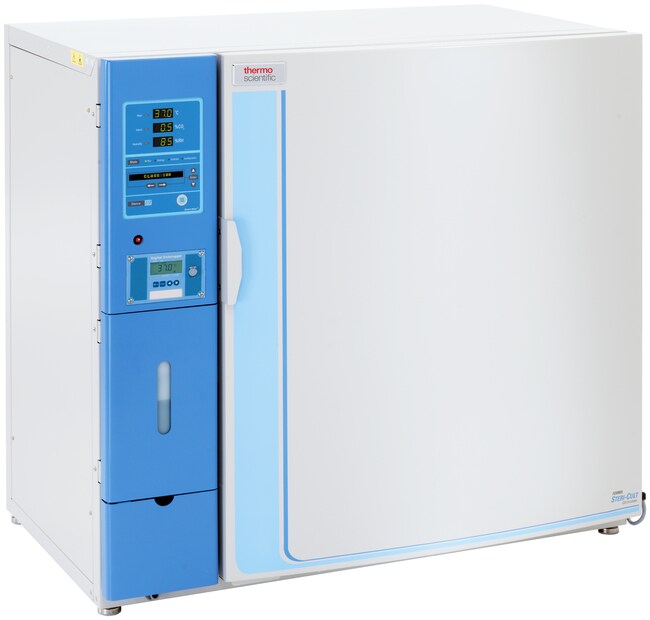

Forma™ Steri-Cult™ CO2 Incubator, 232L & 323L

Catalog number: 3310
Thermo Scientific™

Forma™ Steri-Cult™ CO2 Incubator, 232L & 323L

Catalog number: 3310
Carry out high-volume culturing with a high-level of contamination control with these stackable Thermo Scientific™ Forma™ Steri-Cult™ CO2 Incubators. This incubator combines the most advanced components available into a single incubator: CO2 sensor, precise microprocessor controls, active humidity control, HEPA air filtration and high-temperature decontamination capability.

Catalog Number
3310
Unit Size
Each
Capacity (Metric)
322.8 L
Electrical Requirements
115 V, 50/60 Hz
CO2 Sensor Technology
IR Sensor
Chamber Material
Polished Stainless Steel
Price (USD)
Full specifications
Voltage115 V
Capacity (English)11.4 cu. ft.
Certifications/ComplianceUL, cUL, CE
Data OutputsOptional 4-20mA
DescriptionSingle 323L incubator
Capacity (Metric)322.8 L
Chamber MaterialPolished Stainless Steel
Dimensions (D x W x H) Interior20.6 x 28.8 x 32.8 in. (52.3 x 73.2 x 83.8 cm)
Dimensions (L x W x H)27 x 43 x 39.4 in. (68.6 x 109.2 x 100.2 cm)
Temperature Range (Metric)Ambient +5°C to 50°C
Relative Humidity95%, controllable
MaterialStainless Steel
Electrical Requirements115 V, 50/60 Hz
Humidity SourceExternal humidity reservoir
Weight (English)410 lb.
CO2 Sensor TechnologyIR Sensor
LightingLED
TypeCO2 Incubator
Oxygen ControlNone
CO2 Concentration Range0 to 20%
Unit SizeEach
Catalog Number
Unit Size
Each
Capacity (Metric)
322.8 L
Electrical Requirements
230 V, 50/60 Hz
CO2 Sensor Technology
IR Sensor
Chamber Material
Polished Stainless Steel
Price (USD)
Full specifications
Capacity (English)11.4 cu. ft.
Certifications/ComplianceUL, cUL, CE
Data OutputsOptional 4-20mA
DescriptionSingle 323L incubator
Capacity (Metric)322.8 L
Chamber MaterialPolished Stainless Steel
Dimensions (D x W x H) Interior20.6 x 28.8 x 32.8 in. (52.3 x 73.2 x 83.8 cm)
Dimensions (L x W x H)27 x 43 x 39.4 in. (68.6 x 109.2 x 100.2 cm)
Temperature Range (Metric)Ambient +5°C to 50°C
Relative Humidity95%, controllable
MaterialStainless Steel
Electrical Requirements230 V, 50/60 Hz
Humidity SourceExternal humidity reservoir
Weight (English)410 lb.
CO2 Sensor TechnologyIR Sensor
LightingLED
TypeCO2 Incubator
Oxygen ControlNone
CO2 Concentration Range0 to 20%
Unit SizeEach
Showing 2 of 2
Catalog NumberSpecificationsUnit SizeCapacity (Metric)Electrical RequirementsCO2 Sensor TechnologyChamber MaterialPrice (USD)
3310Full specifications
Each322.8 L115 V, 50/60 HzIR SensorPolished Stainless SteelRequest A Quote
Voltage115 V
Capacity (English)11.4 cu. ft.
Certifications/ComplianceUL, cUL, CE
Data OutputsOptional 4-20mA
DescriptionSingle 323L incubator
Capacity (Metric)322.8 L
Chamber MaterialPolished Stainless Steel
Dimensions (D x W x H) Interior20.6 x 28.8 x 32.8 in. (52.3 x 73.2 x 83.8 cm)
Dimensions (L x W x H)27 x 43 x 39.4 in. (68.6 x 109.2 x 100.2 cm)
Temperature Range (Metric)Ambient +5°C to 50°C
Relative Humidity95%, controllable
MaterialStainless Steel
Electrical Requirements115 V, 50/60 Hz
Humidity SourceExternal humidity reservoir
Weight (English)410 lb.
CO2 Sensor TechnologyIR Sensor
LightingLED
TypeCO2 Incubator
Oxygen ControlNone
CO2 Concentration Range0 to 20%
Unit SizeEach
3311Full specifications
Each322.8 L230 V, 50/60 HzIR SensorPolished Stainless SteelRequest A Quote
Capacity (English)11.4 cu. ft.
Certifications/ComplianceUL, cUL, CE
Data OutputsOptional 4-20mA
DescriptionSingle 323L incubator
Capacity (Metric)322.8 L
Chamber MaterialPolished Stainless Steel
Dimensions (D x W x H) Interior20.6 x 28.8 x 32.8 in. (52.3 x 73.2 x 83.8 cm)
Dimensions (L x W x H)27 x 43 x 39.4 in. (68.6 x 109.2 x 100.2 cm)
Temperature Range (Metric)Ambient +5°C to 50°C
Relative Humidity95%, controllable
MaterialStainless Steel
Electrical Requirements230 V, 50/60 Hz
Humidity SourceExternal humidity reservoir
Weight (English)410 lb.
CO2 Sensor TechnologyIR Sensor
LightingLED
TypeCO2 Incubator
Oxygen ControlNone
CO2 Concentration Range0 to 20%
Unit SizeEach
Showing 2 of 2
Direct Heat Chamber
  • The high capacity chamber are designed to provide maximum culturing space for high throughput applications
  • Standard right hand door swing
  • Polished stainless steel interior with coved corners is designed to be easy-to-clean
  • Active airflow gently distributes air throughout the chamber ensuring homogeneous conditions
  • Gentle airflow circulation is designed to reduce the risk of cross contamination
  • Sturdy stainless steel shelves and supports can be removed without tools for easy cleaning or adjustment
  • IR (Infrared) CO2 sensor provides precise monitoring and is unaffected by changes in rH setpoint

Active Humidity Control
  • Humidity level is easily adjustable with no water pan to manage
  • External water reservoir is designed to minimize chamber contamination and allows refilling without opening chamber
  • At-a-glance water level indicator helps prevent sample desiccation

140°C Sterilization Cycle
  • On-demand 140°C overnight (14 hours) sterilization cycle is independently validated
  • Simplifies cleaning and eliminates the need for separate autoclaving and reassembly of components
  • Designed to effectively eliminate bacteria, mold, yeast, and mycoplasmas from internal surfaces

ISO Class 5 HEPA Filtration Airflow System
  • In-chamber HEPA air filtration continuously filters entire chamber volume every 60 seconds
  • Reaches ISO Class 5 air quality in 5 minutes after door opening
  • Continuous protection minimizes contaminants settling on interior surfaces

Enviro-Scan Microprocessor Control
  • Easy-to-use, alphanumeric LED display
  • Flexible, intuitive controls with message center including process and alarm status messages
  • Configurable audible on/off, access code, tracking low and high alarms
