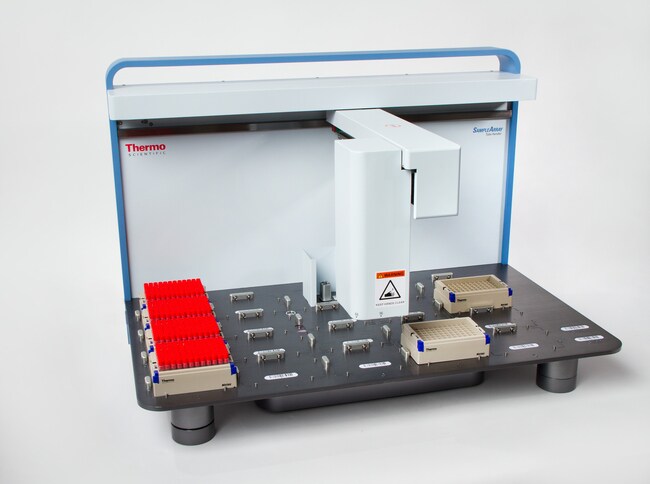

Array sample tubes in 48-, 96-, or 384-format racks quickly and easily for optimal downstream sample processing. Compatible with applications that require sample handling down to -20°C, the Thermo Scientific™ SampleArray™ instrument can transport individual tubes without thawing precious samples. A valuable add-on to the Thermo Scientific™ SampleSeal™ tube sealer or Thermo Scientific™ Capit All™ capper, the SampleArray instrument completes a secure sealing and arraying process that can benefit a range of sample storage and handling requirements.
Catalog Number
5220-4896
Unit Size
Each
Description
SampleArray Base Unit compatible with 48- and 96-format Thermo Scientific tubes
Price (USD)
| Accepts | 48- and 96-format Thermo Scientific tubes |
| Description | SampleArray Base Unit compatible with 48- and 96-format Thermo Scientific tubes |
| Connection Type | Single USB 2.0 connection to instrument |
| Frequency | Unit: DC; Adapter: 47/63 Hz, Unit: DC; Adapter: 47/63 Hz |
| Humidity | ≤75% Non-condensing |
| Temperature (Metric) Operating | -20°C to +30°C (without balance); 10°C to 30°C (with balance) |
| Operating System | Microsoft Windows XP 32 and 64 bit Service Pack 3 and above; Microsoft Windows 7 32 and 64 bit platforms |
| Certifications/Compliance | CE, TUV |
| Throughput | 48-format: 265 tubes/hour; 96-format: 275 tubes/hour |
| Warranty | 12 months |
| Dimensions (L x W x H) | 21 x 32.5 x 22.5 in. (53.3 x 82.5 x 57.1 cm) |
| Height (English) | 22.5 in. |
| Height (Metric) | 57.1 cm |
| Length (English) | 21 in. |
| Length (Metric) | 53.3 cm |
| Weight (English) | 70 lb. |
| Weight (Metric) | 31.75 kg |
| Width (English) | 32.5 in. |
| Width (Metric) | 82.5 cm |
| Voltage | Unit: 24DC; Adapter: 90-265VAC |
| Wattage | 10A DC |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
SampleArray Base Weigh Station Accessory compatible with 48- and 96-format Thermo Scientific tubes
Price (USD)
| Accepts | 48- and 96-format Thermo Scientific tubes |
| Description | SampleArray Base Weigh Station Accessory compatible with 48- and 96-format Thermo Scientific tubes |
| Connection Type | Single USB 2.0 connection to instrument |
| Frequency | Unit: DC; Adapter: 47/63 Hz, Unit: DC; Adapter: 47/63 Hz |
| Humidity | ≤75% Non-condensing |
| Temperature (Metric) Operating | -20°C to +30°C (without balance); 10°C to 30°C (with balance) |
| Operating System | Microsoft Windows XP 32 and 64 bit Service Pack 3 and above; Microsoft Windows 7 32 and 64 bit platforms |
| Certifications/Compliance | CE, TUV |
| Throughput | 48-format: 265 tubes/hour; 96-format: 275 tubes/hour |
| Warranty | 12 months |
| Dimensions (L x W x H) | 21 x 32.5 x 22.5 in. (53.3 x 82.5 x 57.1 cm) |
| Height (English) | 22.5 in. |
| Height (Metric) | 57.1 cm |
| Length (English) | 21 in. |
| Length (Metric) | 53.3 cm |
| Weight (English) | 70 lb. |
| Weight (Metric) | 31.75 kg |
| Width (English) | 32.5 in. |
| Width (Metric) | 82.5 cm |
| Voltage | Unit: 24DC; Adapter: 90-265VAC |
| Wattage | 10A DC |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
SampleArray Base Weigh Station Accessory compatible with 384-format Thermo Scientific tubes
Price (USD)
| Accepts | 384-format Thermo Scientific tubes |
| Description | SampleArray Base Weigh Station Accessory compatible with 384-format Thermo Scientific tubes |
| Connection Type | Single USB 2.0 connection to instrument |
| Frequency | Unit: DC; Adapter: 47/63 Hz, Unit: DC; Adapter: 47/63 Hz |
| Humidity | ≤75% Non-condensing |
| Temperature (Metric) Operating | -20°C to +30°C (without balance); 10°C to 30°C (with balance) |
| Operating System | Microsoft Windows XP 32 and 64 bit Service Pack 3 and above; Microsoft Windows 7 32 and 64 bit platforms |
| Certifications/Compliance | CE, TUV |
| Throughput | 320 tubes/hour |
| Warranty | 12 months |
| Height (Metric) | 41.9 cm |
| Length (English) | 21 in. |
| Length (Metric) | 53.3 cm |
| Weight (English) | 70 lb. |
| Weight (Metric) | 31.75 kg |
| Width (English) | 32.5 in. |
| Width (Metric) | 82.5 cm |
| Voltage | Unit: 24DC; Adapter: 90-265VAC |
| Wattage | 10A DC |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
SampleArray Base Unit with pre-installed Weight Module, compatible with 48- and 96-format Thermo Scientific tubes
Price (USD)
| Accepts | 48- and 96-format Thermo Scientific tubes |
| Description | SampleArray Base Unit with pre-installed Weight Module, compatible with 48- and 96-format Thermo Scientific tubes |
| Connection Type | Single USB 2.0 connection to instrument |
| Frequency | Unit: DC; Adapter: 47/63 Hz, Unit: DC; Adapter: 47/63 Hz |
| Humidity | ≤75% Non-condensing |
| Temperature (Metric) Operating | -20°C to +30°C (without balance); 10°C to 30°C (with balance) |
| Operating System | Microsoft Windows XP 32 and 64 bit Service Pack 3 and above; Microsoft Windows 7 32 and 64 bit platforms |
| Certifications/Compliance | CE, TUV |
| Throughput | 48-format: 265 tubes/hour; 96-format: 275 tubes/hour |
| Warranty | 12 months |
| Dimensions (L x W x H) | 21 x 32.5 x 22.5 in. (53.3 x 82.5 x 57.1 cm) |
| Height (English) | 22.5 in. |
| Height (Metric) | 57.1 cm |
| Length (English) | 21 in. |
| Length (Metric) | 53.3 cm |
| Weight (English) | 70 lb. |
| Weight (Metric) | 31.75 kg |
| Width (English) | 32.5 in. |
| Width (Metric) | 82.5 cm |
| Voltage | Unit: 24DC; Adapter: 90-265VAC |
| Wattage | 10A DC |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
SampleArray Base Unit with pre-installed Weight Module, compatible with 384-format Thermo Scientific tubes
Price (USD)
| Accepts | 384-format Thermo Scientific tubes |
| Description | SampleArray Base Unit with pre-installed Weight Module, compatible with 384-format Thermo Scientific tubes |
| Connection Type | Single USB 2.0 connection to instrument |
| Frequency | Unit: DC; Adapter: 47/63 Hz, Unit: DC; Adapter: 47/63 Hz |
| Humidity | ≤75% Non-condensing |
| Temperature (Metric) Operating | -20°C to +30°C (without balance); 10°C to 30°C (with balance) |
| Operating System | Microsoft Windows XP 32 and 64 bit Service Pack 3 and above; Microsoft Windows 7 32 and 64 bit platforms |
| Certifications/Compliance | CE, TUV |
| Throughput | 320 tubes/hour |
| Warranty | 12 months |
| Height (Metric) | 41.9 cm |
| Length (English) | 21 in. |
| Length (Metric) | 53.3 cm |
| Weight (English) | 70 lb. |
| Weight (Metric) | 31.75 kg |
| Width (English) | 32.5 in. |
| Width (Metric) | 82.5 cm |
| Voltage | Unit: 24DC; Adapter: 90-265VAC |
| Wattage | 10A DC |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
SampleArray Base Unit compatible with 384-format Thermo Scientific tubes
Price (USD)
| Accepts | 384-format Thermo Scientific tubes |
| Description | SampleArray Base Unit compatible with 384-format Thermo Scientific tubes |
| Connection Type | Single USB 2.0 connection to instrument |
| Frequency | Unit: DC; Adapter: 47/63 Hz, Unit: DC; Adapter: 47/63 Hz |
| Humidity | ≤75% Non-condensing |
| Temperature (Metric) Operating | -20°C to +30°C (without balance); 10°C to 30°C (with balance) |
| Operating System | Microsoft Windows XP 32 and 64 bit Service Pack 3 and above; Microsoft Windows 7 32 and 64 bit platforms |
| Certifications/Compliance | CE, TUV |
| Throughput | 320 tubes/hour |
| Warranty | 12 months |
| Height (Metric) | 41.9 cm |
| Length (English) | 21 in. |
| Length (Metric) | 53.3 cm |
| Weight (English) | 70 lb. |
| Weight (Metric) | 31.75 kg |
| Width (English) | 32.5 in. |
| Width (Metric) | 82.5 cm |
| Voltage | Unit: 24DC; Adapter: 90-265VAC |
| Wattage | 10A DC |
| Unit Size | Each |
Showing 6 of 6
| Catalog Number | Specifications | Unit Size | Description | Price (USD) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5220-4896 | Each | SampleArray Base Unit compatible with 48- and 96-format Thermo Scientific tubes | Contact Us › | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5221-WM4896 | Each | SampleArray Base Weigh Station Accessory compatible with 48- and 96-format Thermo Scientific tubes | Contact Us › | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5221-WM384 | Each | SampleArray Base Weigh Station Accessory compatible with 384-format Thermo Scientific tubes | Contact Us › | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5220-4896WM | Each | SampleArray Base Unit with pre-installed Weight Module, compatible with 48- and 96-format Thermo Scientific tubes | Contact Us › | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5220-384WM | Each | SampleArray Base Unit with pre-installed Weight Module, compatible with 384-format Thermo Scientific tubes | Contact Us › | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5220-384 | Each | SampleArray Base Unit compatible with 384-format Thermo Scientific tubes | Contact Us › | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rapid and reliable arraying for your precious samples
- Reconfigure or cherry pick sample tubes for downstream processes at room temperature or in a cold environment down to -20°C
- Create work lists, set quarantine conditions, and run parameters that meet end users' specific requirements using the simple software interface
Intuitive software interface
- Allows creation of arraying procedures directly in the software or can be configured to use worklist files from external database systems
- Includes flexibility and input parameters meeting the needs of simple or complex arraying procedures
Integrated 2D barcode reader
- Confirms the correct sample tubes are selected during the arraying process
- Provides traceability for information transfer to database and LIMS systems
- Includes simple plugin options for use with linear barcode readers to identify sample racks placed on the instrument and execute programs
Weigh module accessory
- Supports monitoring sample mass and volume
- Enables setting quarantine parameters for use in sample management and downstream laboratory procedures
System approach
- A perfect add-on to the SampleSeal sealer, the SampleArray instrument can handle Thermo Scientific foil sealed tubes, in addition to septa and screwtop capped tubes
- SampleArray picklists can also be generated from Thermo Scientific™ VisionTracker™ database software and full racks of tubes can be read after the arraying process to update sample locations using the range of Thermo Scientific™ VisionMate™ 2D barcode readers
- The SampleArray has been designed and validated with a wide range of Thermo Scientific Matrix and Nunc 2D barcoded tubes to work seamlessly out of the box
