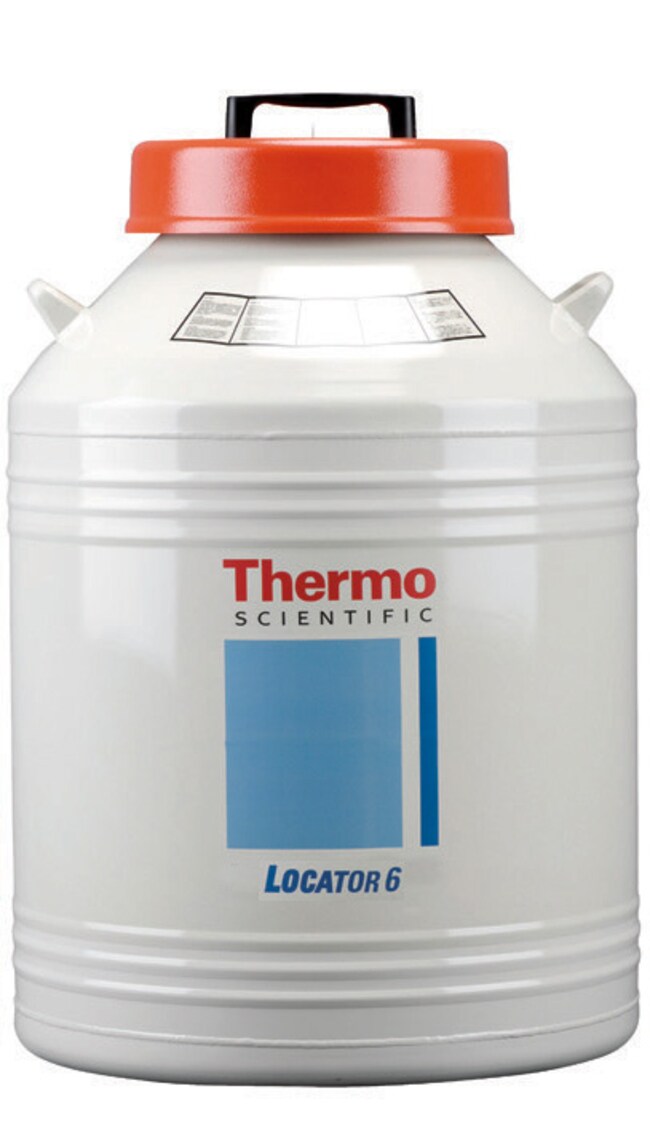

Thermo Scientific™

Locator 6 Rack and Box System

Catalog number: CY509113
Thermo Scientific™

Locator 6 Rack and Box System

Catalog number: CY509113
Economically store up to 6,000 samples in this cryogenic storage system that makes sample retrieval simple and consumes minimum liquid nitrogen.

Catalog Number
CY509113
Unit Size
Each
Description
Locator 6 w/Level Monitor
Price (USD)
Price: 11,500.00
Your price:
Availability
-
Full specifications
Quantity
DescriptionLocator 6 w/Level Monitor
TypeManual Fill LN2 Dewar
Capacity (English)6.2 cu. ft.
Capacity (Metric)184 L
InsulationVacuum
IncludesLevel Monitor
ModelLocator 6
Static Holding Time185 Days
Height (English) Exterior37.5 in.
Height (Metric) Exterior95.3 cm
Diameter (English)26 in.
Diameter (English) Inside Neck8.5 in.
Diameter (Metric)66 cm
Diameter (Metric) Inside Neck21.5 cm
Monitoring OptionsUltrasonic Level
Voltage110/220 V
Electrical Requirements110 - 220V 50/60 Hz
Frequency50/60 Hz
Energy Usage0.99L
Vial Capacity6000
Shipping Weight (English)160 lb.
Shipping Weight (Metric)72.6 kg
HoldsBoxes (60/System)
Rack Capacity10 Boxes
Unit SizeEach
Catalog Number
Unit Size
Each
Description
Locator 6 w/o Level Monitor
Price (USD)
Price: 9,540.00
Your price:
Availability
-
Full specifications
Quantity
DescriptionLocator 6 w/o Level Monitor
TypeManual Fill LN2 Dewar
Capacity (English)6.2 cu. ft.
Capacity (Metric)184 L
InsulationVacuum
IncludesWithout Level Monitor
ModelLocator 6
Static Holding Time185 Days
Height (English) Exterior37.5 in.
Height (Metric) Exterior95.3 cm
Diameter (English)26 in.
Diameter (English) Inside Neck8.5 in.
Diameter (Metric)66 cm
Diameter (Metric) Inside Neck21.5 cm
Monitoring OptionsUltrasonic Level
Voltage110/220 V
Electrical Requirements110 - 220V 50 Hz
Frequency50 Hz
Energy Usage0.99L
Vial Capacity6000
Shipping Weight (English)160 lb.
Shipping Weight (Metric)72.6 kg
HoldsBoxes (60/System)
Rack Capacity10 Boxes
Unit SizeEach
Showing 2 of 2
Catalog NumberSpecificationsUnit SizeDescriptionPrice (USD)AvailabilityQuantity
CY509113Full specifications
EachLocator 6 w/Level Monitor
Price: 11,500.00
Your price:
-
DescriptionLocator 6 w/Level Monitor
TypeManual Fill LN2 Dewar
Capacity (English)6.2 cu. ft.
Capacity (Metric)184 L
InsulationVacuum
IncludesLevel Monitor
ModelLocator 6
Static Holding Time185 Days
Height (English) Exterior37.5 in.
Height (Metric) Exterior95.3 cm
Diameter (English)26 in.
Diameter (English) Inside Neck8.5 in.
Diameter (Metric)66 cm
Diameter (Metric) Inside Neck21.5 cm
Monitoring OptionsUltrasonic Level
Voltage110/220 V
Electrical Requirements110 - 220V 50/60 Hz
Frequency50/60 Hz
Energy Usage0.99L
Vial Capacity6000
Shipping Weight (English)160 lb.
Shipping Weight (Metric)72.6 kg
HoldsBoxes (60/System)
Rack Capacity10 Boxes
Unit SizeEach
CY50985Full specifications
EachLocator 6 w/o Level Monitor
Price: 9,540.00
Your price:
-
DescriptionLocator 6 w/o Level Monitor
TypeManual Fill LN2 Dewar
Capacity (English)6.2 cu. ft.
Capacity (Metric)184 L
InsulationVacuum
IncludesWithout Level Monitor
ModelLocator 6
Static Holding Time185 Days
Height (English) Exterior37.5 in.
Height (Metric) Exterior95.3 cm
Diameter (English)26 in.
Diameter (English) Inside Neck8.5 in.
Diameter (Metric)66 cm
Diameter (Metric) Inside Neck21.5 cm
Monitoring OptionsUltrasonic Level
Voltage110/220 V
Electrical Requirements110 - 220V 50 Hz
Frequency50 Hz
Energy Usage0.99L
Vial Capacity6000
Shipping Weight (English)160 lb.
Shipping Weight (Metric)72.6 kg
HoldsBoxes (60/System)
Rack Capacity10 Boxes
Unit SizeEach
Showing 2 of 2

Features:

  • Compact design minimizes space requirements while maximizing storage capacity.
  • System is suited for both manual and computerized inventory record-keeping methods.
  • Samples are stored below -180°C, even when less than 2 in. (5 cm) of liquid nitrogen remains in the vessel.
  • Optional Ultrasonic Level Monitor safeguards irreplaceable samples with minimal liquid nitrogen evaporation and conduction.
  • Audible alarm sounds when nitrogen level falls below safe range.
  • Advanced vacuum insulation minimizes liquid nitrogen evaporation and reduces operating costs.
  • Secure locking prevents unauthorized entry.

Includes:

Indexed stainless-steel racks designed for use with 2 in. (5 cm) Thermo Scientific™ Nalgene™ Cryogenic Boxes (larger racks available for storage of 5.0 mL ampules). Also available with or without Liquid Nitrogen Level Monitor (optional, factory-installed monitor can also be purchased separately).

Requires:

Nalgene Cryogenic Boxes (order separately)

Compatible with:

  • Boxes, Nalgene, 2 in. for 1.0 and 1.5 mL vials, 100 vials per box, case of 10 (CS509X24)
  • Boxes, Nalgene, 2 in. for 2 mL vials, 81 vials per box, case of 40 (CS509X4); case of 20 (CS509X5)
  • Boxes, Nalgene, 4 in. for 5 mL vials, 81 vials per box, each (CS509X10)
  • Thermo Scientific™ CryoClaw™ (AY509X18)
  • Cups, Suction, 2 replacements for CryoClaw (AY509X19)
  • Logbook (LT509X5)
  • Level Monitor, customer-installed: CN509X11-70 (100-220V)
  • Rack, for 5.0 mL vials (does not include boxes) (HR509X32A-70)
  • Vials, 1 mL, case of 500 (AY509X32)
  • Vials, Cryogenic, 1.2 mL, case of 500, 1.2 mL (AY509X13)
  • Vials, 1.5 mL, case of 500 (AY509X33)
  • Vials, Cryogenic, 2.0 mL, case of 500, 2.0 mL (AY509X12)
  • Warranty varies by country, please contact us for details
