MTCO2 Antibody in Immunocytochemistry (ICC/IF)

FIGURE: 1 / 40

MTCO2 Antibody (A-6404) in ICC/IF

Immunofluorescence analysis of OXPHOS COMPLEX IV SU (MTCO2) was performed using 90% confluent log phase Hep G2 cells. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 10 minutes, and blocked with 1% BSA for 1 hour at room temperature. The cells were labeled with MTCO2 (12C4F12) Mouse Monoclonal Antibody (Product # A-6404) at 2µg/mL in 0.1% BSA and incubated for 3 hours at room temperature and then labeled with Goat anti-Mouse IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 ... View More

MTCO2 Antibody in Immunohistochemistry (IHC)

Please note: We are reviewing Western blot images included in the antibody testing data in our catalog, including those provided by third parties. Unless expressly labeled or annotated as “raw-unedited”, Western blot images included in the antibody testing data in our catalog may have been edited, optimized or otherwise adjusted for presentation.

Product Image Gallery

MTCO2 Antibody — Figure 2 PUMA induces accumulation of GFP-LC3 puncta, which preferentially colocalize with mitochondria. A) Saos-2 TetOn PUMA cells were infected with GFP-LC3 expressing Adenovirus, left for 16 hours and then treated with doxycycline. Cells were maintained in the presence of z-VAD-fmk throughout the experiment. 24 hours later, cells were fixed and immunostained with anti-Tom20 antibody to visualize the mitochondria. B) U2OS cells were infected with GFP-LC3 expressing Adenovirus, left for 16 hours and then transfected with PUMA expression plasmid. Cells were maintained in the presence of z-VAD-fmk throughout the experiment. 24 hours later, cells were fixed and immunostained with anti-Tom20 (upper panel) or anti-GM130 (lower panel). Cells exhibiting GFP-LC3 puncta were then observed under a fluorescence microscope to compare the co-localization of GFP-LC3 puncta with mitchondria (Tom20) or Golgi (GM130). C) U2OS cells were transfected with vector control or PUMA expression plasmid and maintained in the presence of z-VAD-fmk throughout the experiment. Cells were harvested 24 or 48 hours after transfection and cell lysates were immunoblotted with the indicated antibodies to detect levels of mitochondria, Golgi and ER proteins. {TM}

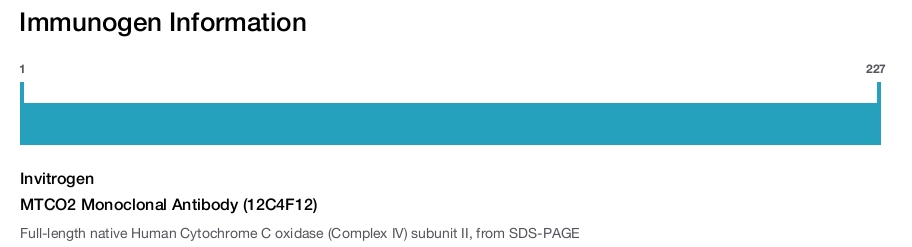

Immunogen image

Immunogen Image MTCO2 Monoclonal Antibody (12C4F12)

Product Details

A-6404

Applications

Tested Dilution

Publications

Western Blot (WB)

1 µg/mL

View 70 publications 70 publications

Immunohistochemistry (IHC)

View 3 publications 3 publications

Immunohistochemistry (Paraffin) (IHC (P))

View 1 publication 1 publication

Immunohistochemistry (Frozen) (IHC (F))

View 1 publication 1 publication

Immunocytochemistry (ICC/IF)

5-10 µg/mL

View 7 publications 7 publications

Miscellaneous PubMed (Misc)

View 6 publications 6 publications

Product Specifications

Species Reactivity

Human

Published species

Chicken, Human, Mouse, Non-human primate, Rat

Host/Isotype

Mouse / IgG2a, kappa

Class

Monoclonal

Type

Antibody

Clone

12C4F12

Immunogen

Full-length native Human Cytochrome C oxidase (Complex IV) subunit II, from SDS-PAGE

3D Epitope / Immunogen

Conjugate

Unconjugated Unconjugated Unconjugated

Form

Liquid

Concentration

1 mg/mL

100 µg

Purification

IgG fraction

Storage buffer

HEPES buffered saline

Contains

0.02% sodium azide

Storage conditions

4°C, do not freeze

Ambient (domestic); Wet ice (international)

AB_221584

Product Specific Information

To facilitate the study of COX structure and mitochondrial biogenesis, Invitrogen offers several subunit-specific mouse anti-OxPhos Complex IV monoclonal antibodies. The binding specificity of our anti-OxPhos Complex IV monoclonal antibody preparations allows researchers to investigate the regulation, assembly, and orientation of COX subunits in a variety of organisms. The antibodies have also proven valuable for analyzing human mitochondrial myopathies and related disorders as well as mitochondrial DNA depletion due to drug toxicity. Alexa Fluor TM 488 and Alexa Fluor TM 594 conjugates of anti- OxPhos Complex IV subunit I are also available for direct staining of these COX proteins. Cell lines can be screened for subunit expression levels for each of the OxPhos complexes by simple western blotting. These results can be combined with native gel electrophoresis or sucrose gradient centrifugation to gather additional information regarding the assembly state of the OxPhos complexes. Many of our antibodies against OxPhos subunits may also be used for immunocytochemical analysis. Image analysis of an antibody's staining pattern can reveal the relative expression and localization of a subunit. This approach has been particularly useful for studying OxPhos subunit expression in diseased muscle fibers and for screening Complex IV-deficient patients.

The antibody was produced in vitro using hybridomas grown in serum-free medium, and then purified by biochemical fractionation. Near homogeneity was judged by SDS-PAGE.

Target Information

Component of the cytochrome c oxidase, the last enzyme in the mitochondrial electron transport chain which drives oxidative phosphorylation. The respiratory chain contains 3 multisubunit complexes succinate dehydrogenase (complex II, CII), ubiquinol-cytochrome c oxidoreductase (cytochrome b-c1 complex, complex III, CIII) and cytochrome c oxidase (complex IV, CIV), that cooperate to transfer electrons derived from NADH and succinate to molecular oxygen, creating an electrochemical gradient over the inner membrane that drives transmembrane transport and the ATP synthase. Cytochrome c oxidase is the component of the respiratory chain that catalyzes the reduction of oxygen to water. Electrons originating from reduced cytochrome c in the intermembrane space (IMS) are transferred via the dinuclear copper A center (CU(A)) of subunit 2 and heme A of subunit 1 to the active site in subunit 1, a binuclear center (BNC) formed by heme A3 and copper B (CU(B)). The BNC reduces molecular oxygen to 2 water molecules using 4 electrons from cytochrome c in the IMS and 4 protons from the mitochondrial matrix. [UniProt]

For Research Use Only. Not for use in diagnostic procedures. Not for resale without express authorization.

Bioinformatics

Protein Aliases: Co2; cyclooxygenase

View more View less

Gene Aliases: COII; COX2; MTCO2

View more View less

UniProt ID: (Human) P00403

View more View less

Entrez Gene ID: (Human) 4513

View more View less

Performance Guarantee

If an Invitrogen™ antibody doesn't perform as described on our website or datasheet,we'll replace the product at no cost to you, or provide you with a credit for a future purchase.*
