Immunofluorescence analysis of iNOS was performed using 70% confluent log phase Raw 264.7 cells treated with 100 ng/ml of LPS for 24 hours. The cells were fixed with 4% paraformaldehyde for 10 minutes, permeabilized with 0.1% Triton™ X-100 for 10 minutes, and blocked with 1% BSA for 1 hour at room temperature. The cells were labeled with iNOS Rabbit Polyclonal Antibody (PA516524) at 2ug/ml in 0.1% BSA and incubated for 3 hours at room temperature and then labeled with Goat anti-Rabbit IgG (H+L) Superclonal™ Secondary Antibody, Alexa Fluor® 488 conjugate (A27034) at a dilution of 1:2000 for 45 minutes at room temperature (Panel a: green). Nuclei (Panel b: blue) were stained with SlowFade® Gold Antifade Mountant with DAPI (S36938). F-actin (Panel c: red) was stained with Alexa Fluor® 555 Rhodamine Phalloidin (Product # R415, 1:300). Panel d represents the merged image showing cytoplasmic localization. Panel e shows the untreated cells. Panel f represents the no primary antibody control. The images were captured at 60X magnification.
|Tested species reactivity||Human, Mouse, Rat|
|Host / Isotype||Rabbit / IgG|

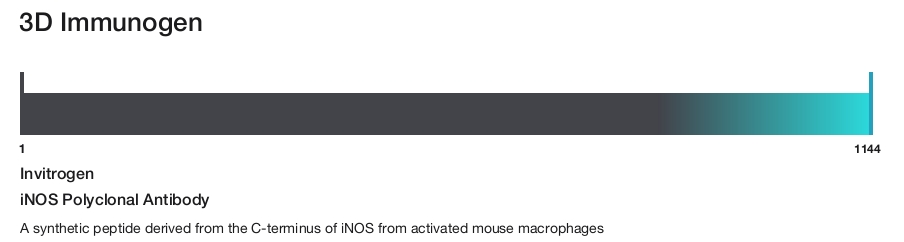

|Immunogen||A synthetic peptide derived from the C-terminus of iNOS from activated mouse macrophages|
|Storage buffer||PBS, pH 7.4, with 0.2% BSA|
|Contains||0.09% sodium azide|
|Storage Conditions||4° C|
|Tested Applications||Dilution *|
|Flow Cytometry (Flow)||3-5 µg/10^6 cells|
|Immunocytochemistry (ICC)||2 µg/ml|
|Immunofluorescence (IF)||2 µg/ml|
|Immunohistochemistry (IHC)||Assay Dependent|
|Western Blot (WB)||1-3 µg/mL|
* Suggested working dilutions are given as a guide only. It is recommended that the user titrate the product for use in their own experiment using appropriate negative and positive controls.
PA5-16524 targets iNOS in IHC applications and shows reactivity with Human, mouse, and Rat samples.
The PA5-16524 immunogen is a synthetic peptide derived from the C-terminus of iNOS from activated mouse macrophages.
NOS oxidizes a guanidine nitrogen of arginine releasing nitric oxide in the form of a free radical and citrulline. Nitric oxide thus generated acts as a messenger in diverse functions including vasodilation neurotransmission, anti-tumor and anti-pathogenic activities.. NOS is classified under three types:
For Research Use Only. Not for use in diagnostic procedures. Not for resale without express authorization.
HEP-NOS; Hepatocyte NOS; inducible; inducible nitric oxide synthase; Inducible NO synthase; Inducible NOS; MAC-NOS; macrophage; Macrophage NOS; nitric oxide synthase; nitric oxide synthase 2; nitric oxide synthase 2, inducible; nitric oxide synthase 2, inducible, macrophage; nitric oxide synthase 2A (inducible, hepatocytes); Nitric oxide synthase, inducible; nitric oxide synthase, macrophage; NOS type II; NOS, type II; OTTMUSP00000000202; Peptidyl-cysteine S-nitrosylase NOS2
HEP-NOS; i-NOS; INOS; Inosl; NOS; Nos-2; NOS-II; NOS2; NOS2A
