As global efforts to mitigate climate change intensify, innovative technologies like Raman spectroscopy are emerging as essential tools for improving carbon capture processes. Carbon capture and storage (CCS) is a promising method for reducing CO2 emissions from industrial processes, particularly in energy production and heavy industries. However, one of the major challenges in developing efficient carbon capture systems lies in accurately monitoring and controlling the complex chemical reactions involved. This is where Raman spectroscopy comes into play.
Raman spectroscopy, a nondestructive optical technique, has emerged as a valuable tool in the real-time analysis of chemical processes. Its ability to provide detailed molecular information about a wide range of compounds makes it an ideal candidate for carbon capture systems, where understanding the dynamics of CO2 and solvent interactions is key to optimizing performance.
The Role of Raman Spectroscopy in Carbon Capture
Raman spectroscopy is a powerful technique that enables real-time monitoring of chemical reactions. In a recent study by researchers at the Pacific Northwest National Laboratory (PNNL), a process Raman analyzer equipped with a flow cell sampling optic, demonstrated its ability to provide real-time, online measurements of process chemistry. This breakthrough technology offers significant advantages in understanding and optimizing carbon capture systems.
Researchers used an in situ Raman cell to capture spectra of key substances like CO2, H2O, and the water-lean solvent 2-EEMPA at varying concentrations. Through advanced data analysis, they were able to quantify CO2 and H2O loadings in the solvent, making it possible to monitor and control the solvent’s chemical composition as the process unfolded.
A Breakthrough Study
In their experiment, the PNNL team focused on improving water-lean CO2 solvents for post-combustion carbon capture. The ability to measure and control CO2 and water balance is critical for maintaining solvent efficiency. Raman spectroscopy proved instrumental in this endeavor, allowing for precise monitoring of chemical reactions in real time.
This technology’s integration into carbon capture systems demonstrates its ability to enhance process efficiency and reduce operational costs, paving the way for more effective climate change solutions.
Study Highlights
Researchers utilized an all-in-one process Raman analyzer coupled with a sampling optic for in situ measurements (Figure 1).

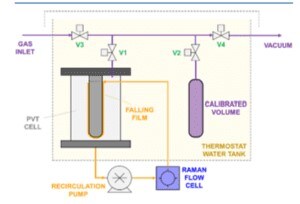

Figure 1: Schematic courtesy of the Pacific Northwest National Laboratory showing online CO2 measurements using a FlowCell1
Solvent samples were periodically extracted from rich and lean solvent locations, with the optic providing real-time analysis.
A chemometrics model developed using the PLS toolbox from Eigenvector accurately predicted CO2 loadings across a range of water content levels.
The model’s results, illustrated in Figures 2-3, showed a strong correlation between Raman predictions and physical sampling via Karl Fisher Titration, highlighting Raman’s accuracy in determining chemical composition.
Figure 2: PLS Model Results Showing Carbon Loading in Training (Red Squares) and Validation Data (Blue Line) at Different Water Content Levels: (A) 0%, (B) 1%, (C) 2%, (D) 4%, (E) 6%, and (F) 8% H2O. Courtesy of the Pacific Northwest National Laboratory.2

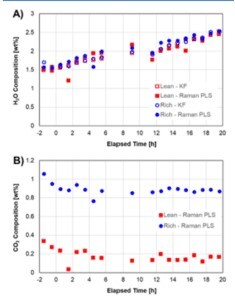

Figure 3: Raman predictions overlapping with physical sampling via Karl Fisher Titration. Courtesy of the Pacific Northwest National Laboratory3
Key Takeaways
This study demonstrates the potential of Raman spectroscopy to revolutionize carbon capture by offering real-time insight into process chemistry. The technology enables efficient system monitoring, better water balance control, and more precise CO2 quantification. By integrating Raman analyzers into carbon capture systems, the future of climate change mitigation looks more promising, with systems that are easier to manage and more cost-effective.
Conclusion
The use of Raman spectroscopy in carbon capture systems represents a significant step forward in the fight against climate change. By providing detailed, real-time chemical analysis, it helps researchers and industry professionals optimize system performance, improve solvent management, and ultimately, make carbon capture more commercially viable. (Read the full paper and explore the findings in more depth.
Additional Notes and Resources
- Article: In Situ Raman Methodology for Online Analysis of CO2 and H2O Loadings in a Water-Lean Solvent for CO2 Capture. (https://pubs.acs.org/doi/10.1021/acs.analchem.3c02281)
- Raman spectroscopy academy.
-
