Why Raman spectroscopy for natural gas analysis?
Raman spectroscopy is a powerful analytical tool for real-time natural gas composition analysis. Unlike traditional methods, Raman spectroscopy offers rapid, non-invasive measurements without the need for sample preparation. It excels in identifying and quantifying hydrocarbons such as methane, ethane, propane, and butane, providing real-time insights into gas quality and composition.
For natural gas producers, in-line Raman spectroscopy is particularly advantageous because it enables continuous monitoring of gas streams. This helps ensure compliance with quality specifications, enhances process efficiency, and helps detect anomalies early, which are critical factors for midstream and downstream operations.
What is Raman spectroscopy?
Raman spectroscopy is a nondestructive optical technique that uses laser light to interact with molecular vibrations, providing a unique spectral fingerprint of a substance. When light is scattered off a sample, most of it is elastically scattered (Rayleigh scattering), but a small fraction undergoes inelastic scattering, known as Raman scattering. This shift in wavelength corresponds to the vibrational energy levels of the molecules, allowing for precise identification and quantification of chemical components. Raman is particularly well-suited for gas-phase analysis due to its ability to measure multiple species simultaneously with high specificity and sensitivity.
What is in-line analysis and how does it compare to other methods?
In-line analysis refers to the continuous, real-time monitoring of a process stream without interrupting production. It provides immediate feedback and enables proactive adjustments to maintain quality and efficiency. This approach is distinct from other analytical methods:
- Off-line analysis: Requires samples to be extracted and analyzed in a laboratory, leading to delays in results and potential quality risks due to process variability.
- At-line analysis: Involves taking samples to a nearby lab or analysis station, which offers quicker results than off-line methods but still introduces delays and handling variability.
- On-line analysis: Uses automated sampling systems to periodically collect and analyze process samples, providing faster feedback than off-line and at-line methods but not truly continuous monitoring.
In-line Raman spectroscopy, in contrast, delivers real-time, continuous data, allowing for immediate adjustments and enhanced process control. It eliminates the need for sample transport and preparation, reducing operational inefficiencies and ensuring a more responsive quality control system.
Tips for Implementing in-line Raman spectroscopy for natural gas analysis
- Choose the appropriate Raman instrument: Select a Raman analyzer suitable for natural gas applications. Factors such as sensitivity, accuracy, environmental conditions, and ease of use should be considered. A process Raman system can provide a robust solution for in-field midstream measurements, offering portability and safety in hazardous locations.

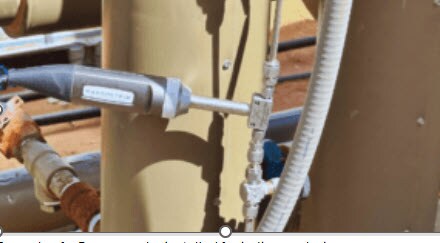

- Install the Raman probe: Securely install the in-line Raman probe, such as a flow cell, directly into the natural gas pipeline at a strategic location that helps ensure representative sampling of the gas stream. Proper positioning is essential for accurate and reliable measurements.
- Set up the Raman system: Configure the Raman system, including the excitation laser, spectrometer, and data acquisition software. Calibration is necessary to help ensure precision, with the system illuminating the sample and capturing scattered Raman photons for spectral analysis.
- Collect baseline data: Establish baseline Raman spectra for the natural gas components of interest before initiating real-time analysis. This helps in distinguishing expected composition from potential contaminants or variations.
- Monitor the natural gas stream: Continuously collect Raman spectra at regular intervals using the in-line probe. Monitoring real-time changes in the Raman signature enables early detection of composition shifts, contamination, or other process variations.
- Analyze the spectra: Use specialized software to interpret the Raman spectra and quantify hydrocarbon components such as methane, ethane, propane, and butane. Automated data processing helps ensure efficiency and accuracy in composition analysis.
- Compare the data: Cross-reference Raman measurement results with industry standards or historical gas analysis data to verify composition accuracy and consistency.
- Take corrective action: Utilize real-time Raman data to make process adjustments and help ensure the natural gas meets required specifications. This can help optimize production efficiency, reduce waste, and enhance safety compliance.
Conclusion
Implementing in-line Raman spectroscopy for natural gas analysis allows for real-time compositional monitoring, enhancing efficiency, safety, and quality control in natural gas processing and transportation. By integrating a robust Raman analyzer, producers can achieve reliable, continuous measurements without disrupting operations.
