Microscopy has significantly advanced our ability to observe the unseen world, but even high-quality images can suffer from blurring due to the physics of light and optical systems. This blurring or background signal can make it challenging to see fine structural details.

Image deconvolution is a computational technique that helps address this issue by reducing background and enhancing image clarity.

In this blog post, we’ll explore the basics of image deconvolution, how it improves microscopy images, and some tools you can use to apply it to your own data.

Explore deconvolution with the EVOS M7000 Imaging System

What is deconvolution?
Why is image deconvolution useful and what can it do for you?
- Benefits of deconvolution
- Applications of deconvolution microscopy
How does deconvolution work?
- Point spread function
- Deconvolution algorithms
5 examples of 2D image deconvolution, before and after
More deconvolution learning resources

What is deconvolution?

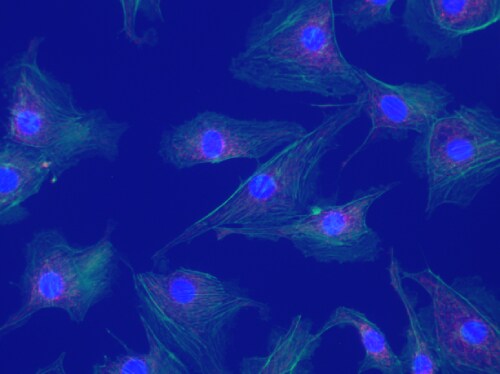

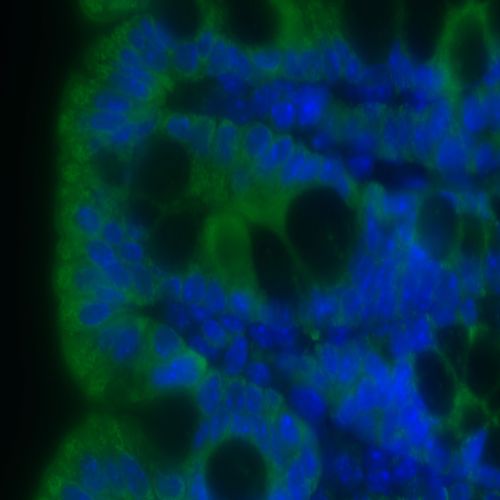

When you’re working with fluorescence microscopy, especially widefield, you’ve probably noticed that your images can appear a bit blurry or otherwise demonstrate background signal. This blur isn’t due to a mistake on your part; it’s a result of out-of-focus light from different focal planes within your sample contributing to the image. Essentially, light from structures above and below your current focal plane gets captured, thus reducing the clarity of the structures you’re interested in.

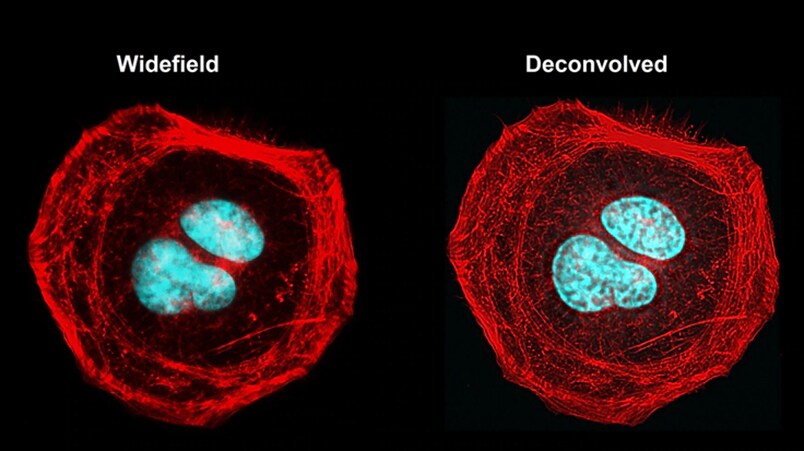

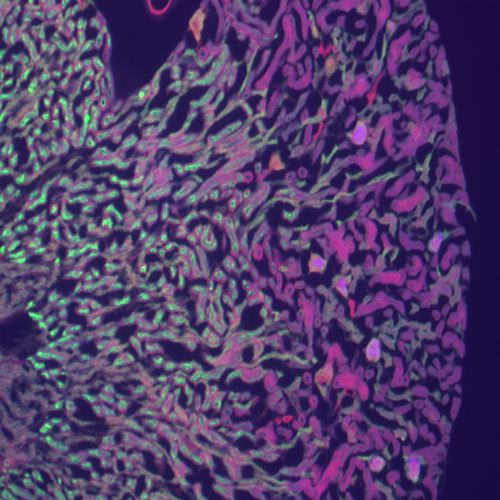

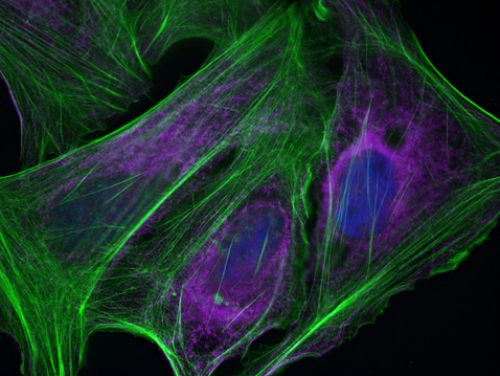

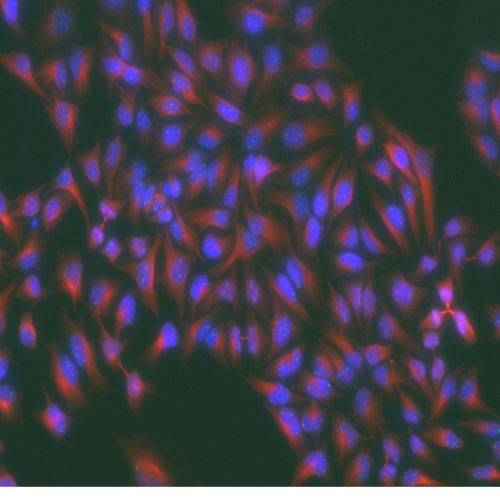

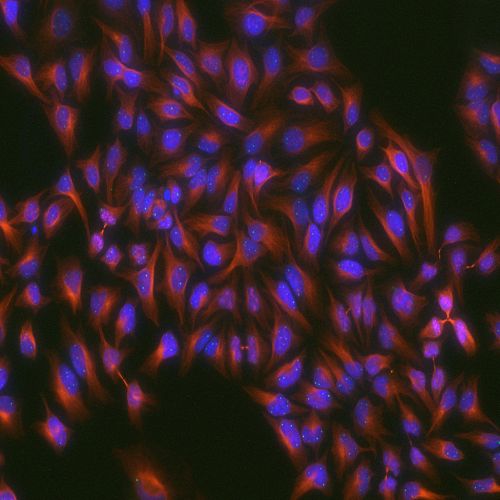

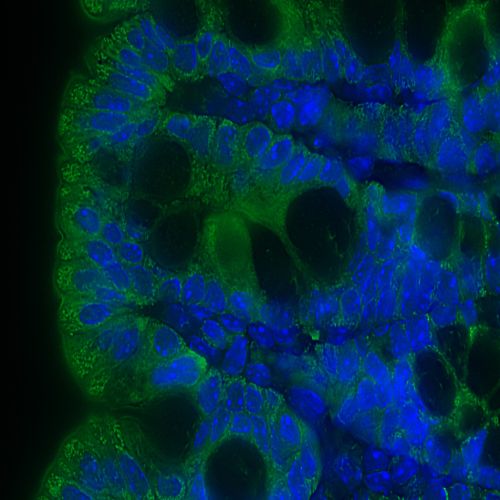

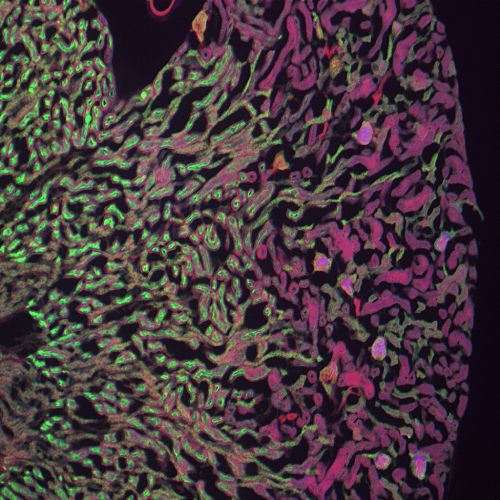

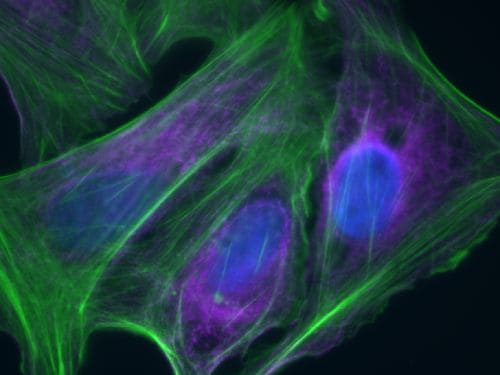

Deconvolution is a computational technique that helps address this issue. It uses the point spread function (PSF) of your microscope—a model of how a single point of light behaves in your imaging system—to mathematically reassign out-of-focus light back to its original source. By doing this, deconvolution enhances both the contrast and resolution of your images, making it easier to distinguish fine details in your sample.

There are various algorithms available for image deconvolution, ranging from simple deblurring methods to more complex iterative approaches. Some advanced techniques even incorporate deep learning to improve the accuracy of the PSF estimation and the deconvolution process itself.

In practice, applying deconvolution to your microscopy images can significantly improve their quality, making it a valuable tool for anyone looking to get the most out of their fluorescence microscopy data.

Why is image deconvolution useful and what can it do for you?

Image deconvolution is a powerful technique that enhances image clarity. Here’s why it’s useful and how you can leverage it in your research.

Benefits of deconvolution

Improved Image Clarity: Deconvolution algorithms reassign out-of-focus light back to its source, resulting in sharper images with enhanced contrast and resolution.
Enhanced Signal-to-Noise Ratio (SNR): By reducing background noise, deconvolution improves the SNR, making it easier to detect and analyze faint signals.
Better 3D Visualization: When applied to Z-stacks, deconvolution refines the axial resolution, offering more accurate three-dimensional reconstructions of your samples.
Quantitative Accuracy: Sharper images lead to more precise measurements of structures, intensities, and spatial relationships within your samples.

Applications of deconvolution microscopy

Live-Cell Imaging: Enhance time-lapse sequences by reducing blur, allowing for clearer observation of dynamic processes. Minimize fluorescence exposure, increasing the viability of live cells.
Thick Tissue Imaging: Improve clarity in thick specimens where out-of-focus light is prevalent, thereby aiding in the study of complex tissues.
Co-Localization Studies: Achieve more accurate overlap analysis of multiple fluorescent markers by minimizing signal bleed-through.
Super-Resolution Techniques: Combine deconvolution with methods like structured illumination microscopy (SIM) to push beyond traditional resolution limits.

How does deconvolution work?

Deconvolution relies on complex image algorithms, and ease of use often depends on the tools used to implement them.

Point spread function

In microscopy, the point spread function (PSF) describes how a point source of light—like a fluorescent molecule—appears in an image due to the diffraction and imperfections inherent in the optical system. Instead of a perfect point, the light spreads out, creating a characteristic pattern that reflects how a specific microscope blurs the image.

By modeling the PSF, deconvolution algorithms can reassign out-of-focus light back to its origin, enhancing image clarity and resolution. This process is particularly beneficial in fluorescence microscopy, where out-of-focus light can significantly obscure fine structural details.

The PSF can be determined theoretically, based on the microscope’s optical parameters, or empirically, by imaging sub-resolution beads and analyzing how their light spreads. Accurate knowledge of the PSF allows for more effective deconvolution, leading to sharper, more detailed images that better represent the actual structure of the specimen.

The EVOS Analysis deconvolution tool uses an adaptive PSF, a type of constrained-iterative computational algorithm. Unlike methods that use digital haze reduction, an adaptive PSF restores images by reassigning scattered light to its original location, reducing background fluorescence and sharpening the fluorescence signal. This technique can resolve faint, blurred details in the original image. With appropriate controls, an image deconvolved via an adaptive PSF may be used for quantitative fluorescence measurements.

Deconvolution algorithms

In microscopy, deconvolution algorithms are essential for enhancing image clarity by mitigating blurring effects introduced by the optical system’s point spread function (PSF). These algorithms primarily fall into two categories: inverse filter methods and iterative methods.

Iterative algorithms approach deconvolution as a progressive refinement process. They start with an initial estimate of the true image and repeatedly update this estimate to minimize the difference between the observed image and the convolution of the estimate with the PSF. This approach is particularly effective in handling noise and complex blurring.

Richardson–Lucy (RL) Deconvolution: Assumes Poisson noise, commonly found in photon-limited imaging. It progressively refines the image estimate, providing high-quality restorations, especially in low-light conditions.
Maximum Likelihood Estimation (MLE): A statistical approach that estimates the most probable original image given the observed data and noise characteristics. It’s robust but computationally intensive, often used in high-precision applications.
Landweber Iteration: A simple iterative method that updates the image estimate by moving in the direction opposite to the gradient of the error. While straightforward, it can be slow to converge and may require many iterations.
Total Variation (TV) Regularization: Incorporates a regularization term to preserve edges while reducing noise. It’s beneficial for images with sharp features, maintaining structural integrity during deconvolution.

Inverse filter methods aim to directly reverse the blurring effect by applying an inverse operation to the PSF. These methods are generally faster, but can be more sensitive to noise.

Naïve Inverse Filtering: Directly divides the Fourier transform of the observed image by the Fourier transform of the PSF. While simple, it’s highly sensitive to noise.
Wiener Deconvolution: An extension of inverse filtering that incorporates a noise-to-signal ratio, aiming to minimize the mean square error between the estimated and true images. It allows a balance between deblurring and noise suppression.
Tikhonov Regularization: Adds a regularization term to stabilize the inversion process, reducing the impact of noise and improving the robustness of the deconvolution.
Blind deconvolution: Used when the PSF is unknown, this method simultaneously estimates the PSF and the deblurred image. It’s particularly useful when measuring the PSF is impractical, though it requires careful implementation to avoid artifacts.
AI-powered algorithms: Recent advancements involve using deep learning models, such as convolutional neural networks (CNNs), to perform deconvolution. These models can learn complex mappings from blurred to sharp images, offering improved performance in certain scenarios.
