EVOS XL Core Imaging System
Catalog number: AMEX1000
Designed to eliminate the complexities of microscopy, the EVOS XL Core system captures high-quality brightfield cell images right at your benchtop within a minute. It’s the perfect instrument for monitoring cell cultures, either within a hood or in your cell culture room.
Features
The EVOS XL Core system extends EVOS simplicity and ease of use to brightfield microscopy. With a bright LED light source, a high-resolution color camera, and a choice of objectives, it can capture, display, and save high-quality color images in just a few clicks.
The XL Core system offers:
Easy self-installation
Unpacking and installation in less than 2 minutes with no alignment or bulbs to change, ever
High-quality color options
High-quality brightfield and phase contrast images with adjustable focus, light intensity, and color tone
Optional mechanical stage
Optional mechanical stage allows use of more objectives than the included fixed stage
Thermo Fisher Connect™ cloud
Additional post-acquisition image analysis via the Thermo Fisher Connect™ cloud application
Enhanced safety
Many operational functions can be controlled through software, reducing the need to touch the instrument
Biosafety cabinet compatible
Can be used within a biosafety cabinet or hood
Fast or slow mode
Your choice whether to maximize speed or resolution
Videos & demos
View more EVOS systems videos and demos under Resources.
Featured Images
Specifications
| Category | Attribute | Description |
| Optics | Description | Infinity-corrected optical system; RMS-threaded objectives with 45 mm parfocal distance |
| Illumination | Adjustable-intensity LED (>50,000-hour life per light cube) | |
| Contrast methods | Transmitted light (bright field and phase contrast) | |
| Objectives | 4x, 10x, 20x, 40x, plan LWD, infinity; Optional 2x (no phase) | |
| Objective turret | 4-position, manual control | |
| Condenser | 3-position turret for bright field and phase contrast |
|
| Condenser working distance | 60 mm | |
| Stages | Fixed stage (AMEX1000); Optional mechanical stage (AMEX4712) • X-Y axis controls and vessel holder framework • 120 mm x 78 mm range of motion • Both knobs 56 mm/rev |
|
| Focus mechanism | Coaxial focus knobs with tension control: • Coarse focus: 38 mm/rev • Fine focus: 0.2 mm/rev, precision 0.002 mm |
|
| LCD Display | 12.1” high-resolution (1,024 x 768 pixels) color monitor with adjustable tilt | |
| Camera | Color: 1/2” 2,048 x 1, 536, 3.1 megapixels | |
| Physical characteristics | Power supply | AC adapter; input 100-240 V, 47-63 Hz; output 12 V DC/2.0 A 24 W max |
Instrument dimensions |
21.0” (W) x 6.0” (H) x 12.5” (D) 533 mm (W) x 406 mm (H) x 318 mm (D) |
|
| Weight | 9.1 kg (20.1 lb) 10.0 kg (22.1 lb) with mechanical stage |
|
| Output ports | 2 USB 2.0 ports |
|

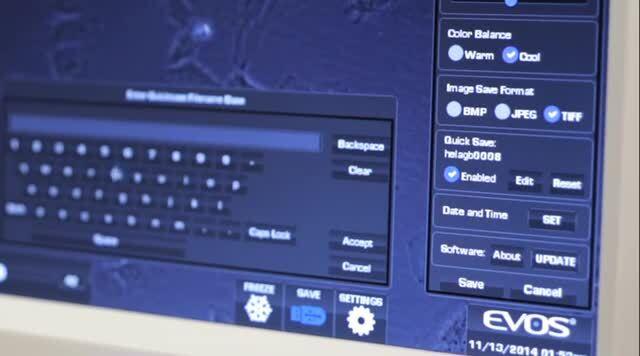

| Hardware/Software | Image acquisition | Embedded operating system with imaging software for image capture and save via mouse or front-mounted manual buttons |
| Captured images | Color camera: 24-bit full-color TIFF or PNG; JPEG, BMP (2,048 x 1,536 pixels) |
For Research Use Only. Not for use in diagnostic procedures.
