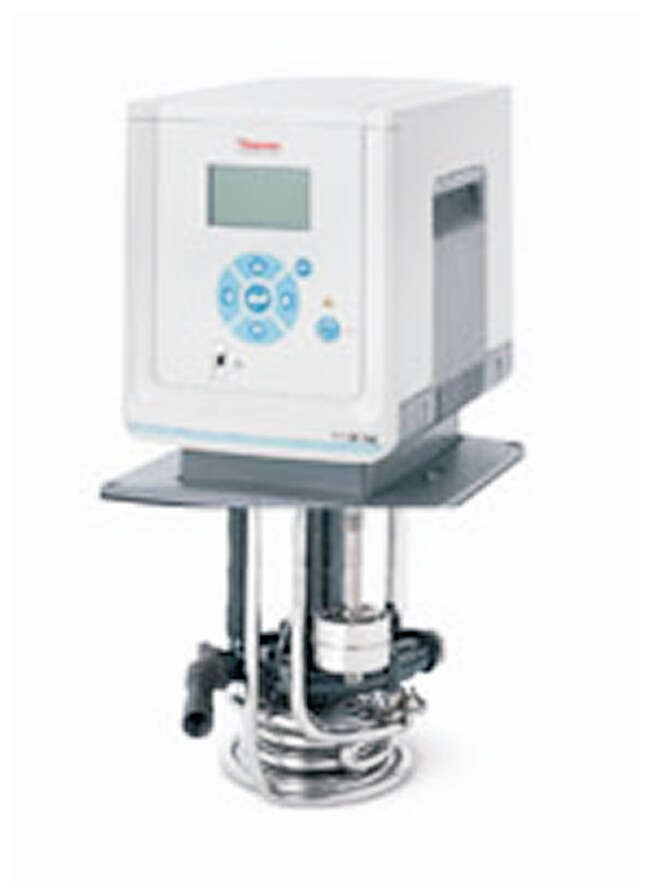

Thermo Scientific™

SC150L Immersion Circulators

Catalog number: 1540016
Thermo Scientific™

SC150L Immersion Circulators

Catalog number: 1540016

Maintain temperature up to +150°C, while increasing immersion depth to accommodate larger or deeper baths. The Thermo Scientific™ SC150L Immersion Circulator, one of the basic models in the new generation of superior quality thermostats, features an enhanced digital display and easy–to–use touchpad settings, allowing you to easily tune the temperature to meet your specific application requirements.


Catalog Number
1540016
Unit Size
Each
Model
SC150L with clamp
Voltage
100 V
Frequency
50/60 Hz
Price (USD)
Full specifications
DescriptionWith clamp; 100V/50-60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50/60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L with clamp
Safety Class3/FL
Temperature Stability0.02°C
Voltage100 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements100 V 50/60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC150L
Voltage
230 V
Frequency
50 Hz
Price (USD)
Full specifications
Description230V/50Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L
Safety Class3/FL
Temperature Stability0.02°C
Voltage230 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements230 V 50 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC150L
Voltage
100 V
Frequency
50/60 Hz
Price (USD)
Full specifications
Description100V/50-60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50/60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L
Safety Class3/FL
Temperature Stability0.02°C
Voltage100 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements100 V 50/60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC150L
Voltage
115 V
Frequency
60 Hz
Price (USD)
Full specifications
Description115V/60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L
Safety Class3/FL
Temperature Stability0.02°C
Voltage115 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements115 V 60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC150L with clamp
Voltage
230 V
Frequency
50 Hz
Price (USD)
Full specifications
DescriptionWith clamp; 230V/50Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L with clamp
Safety Class3/FL
Temperature Stability0.02°C
Voltage230 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements230 V 50 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
Catalog Number
Unit Size
Each
Model
SC150L with clamp
Voltage
115 V
Frequency
60 Hz
Price (USD)
Full specifications
DescriptionWith clamp; 115V/60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L with clamp
Safety Class3/FL
Temperature Stability0.02°C
Voltage115 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements115 V 60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
Showing 6 of 6
Catalog NumberSpecificationsUnit SizeModelVoltageFrequencyPrice (USD)
1540016Full specifications
EachSC150L with clamp100 V50/60 HzRequest A Quote
DescriptionWith clamp; 100V/50-60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50/60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L with clamp
Safety Class3/FL
Temperature Stability0.02°C
Voltage100 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements100 V 50/60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
154-0001Full specifications
EachSC150L230 V50 HzRequest A Quote
Description230V/50Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L
Safety Class3/FL
Temperature Stability0.02°C
Voltage230 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements230 V 50 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
1540006Full specifications
EachSC150L100 V50/60 HzRequest A Quote
Description100V/50-60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50/60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L
Safety Class3/FL
Temperature Stability0.02°C
Voltage100 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements100 V 50/60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
1540008Full specifications
EachSC150L115 V60 HzRequest A Quote
Description115V/60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L
Safety Class3/FL
Temperature Stability0.02°C
Voltage115 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements115 V 60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
154-0011Full specifications
EachSC150L with clamp230 V50 HzRequest A Quote
DescriptionWith clamp; 230V/50Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency50 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L with clamp
Safety Class3/FL
Temperature Stability0.02°C
Voltage230 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements230 V 50 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
1540018Full specifications
EachSC150L with clamp115 V60 HzRequest A Quote
DescriptionWith clamp; 115V/60Hz
Dimensions (L x W x H)7.8 x 5.4 x 15.1 in. (19.9 x 13.8 x 38.4 cm)
Frequency60 Hz
Heating Capacity2 kW/1.2 kW
Height (English)15.1 in.
Height (Metric)38.4 cm
Length (English)7.8 in.
Length (Metric)19.9 cm
Max. Pressure300 mbar/4.35 psi
ModelSC150L with clamp
Safety Class3/FL
Temperature Stability0.02°C
Voltage115 V
Weight (English)3.3 lb.
Weight (Metric)7.3 kg
Width (English)5.4 in.
Width (Metric)13.8 cm
Certifications/ComplianceCE, CSA, UL, RoHS
CommunicationsUSB, RS232, RS485, Ethernet/LAN, Analog I/O
Electrical Requirements115 V 60 Hz
Flow Rate17L/min.
Temperature Range13°C to 150°C
Unit SizeEach
Showing 6 of 6
  • Max. temperature: 150°C
  • Increased immersion depth to accommodate larger or deeper baths
  • Low-liquid level alarm for Safety Class III
  • Automatic controller shutdown at detection of excessive high temperature, low liquid level or motor overload
  • USB communication port and options for RS-232, RS-485, Ethernet/LAN, Analog I/O
  • Self-Tuning PID controller for optimized temperature control
  • Five programmable set point temperatures
  • RTA (Real Temperature Adjustment) for calibration
  • Two levels of pump speed adjustment to increase flow or bath agitation
  • Three languages (English, German, French)
  • Change digital display resolution between 0.1 and 0.01 and between °C — °F — °K
  • Acoustic and optical alarm
  • Auto-Restart feature after power failure

Includes:8 and 12mm hose barbs with clamp (–0016, –0018, –0011 only), pump plug for external circulation, 6ft. power cord.



  • Warranty varies by country, please contact us for details
