Thermo Scientific™

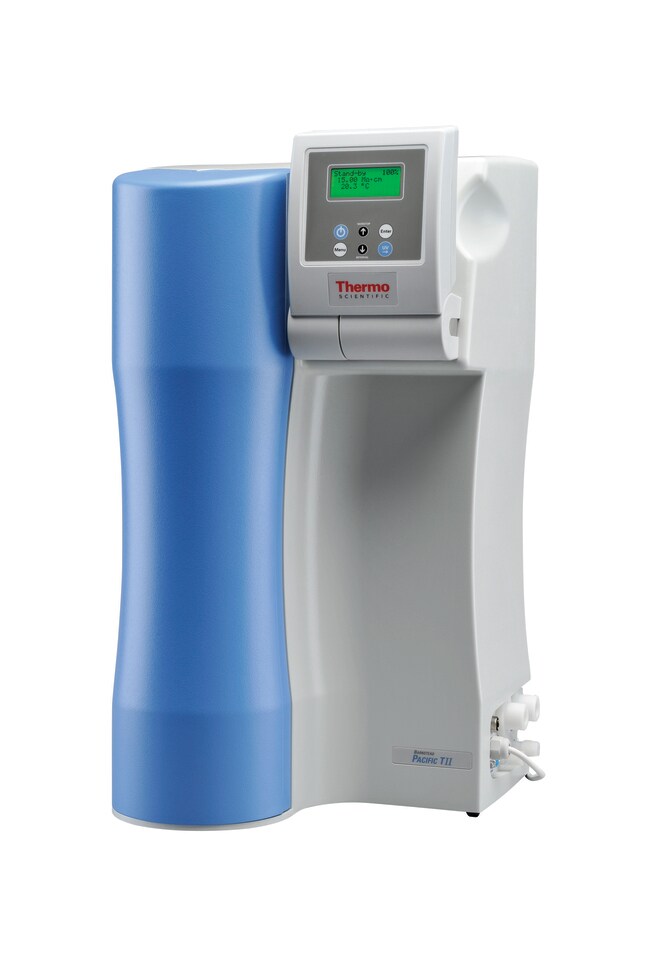

Barnstead™ Pacific TII Water Purification System

Name: Barnstead™ Pacific TII Water Purification System
SKU: 50131982

Catalog number: 50131982

Related applications: Water Purification

Technical SupportCustomer Service

Barnstead™ Pacific TII Water Purification System

Thermo Scientific™

Barnstead™ Pacific TII Water Purification System

Catalog number: 50131982

Related applications: Water Purification

Technical SupportCustomer Service

Convert tap water into Type 2, high purity water with the automatic and cost-efficient Thermo Scientific™ Barnstead™ Pacific TII Water Purification System. This system supports daily requirements from 20 to 200 liters. It removes approximately 98% of inorganic ions and 99% of all dissolved organic substances, as well as microorganisms and particles, with its high performance, reverse osmosis membrane.

Catalog Number

50131982

Unit Size

Each

Description

Pacific TII 20 (UV)

Price (USD)

Request A Quote

Availability

***

Full specifications

Quantity

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	20 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 20 (UV)
Permeate performance	20 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

Catalog Number

50132123

Unit Size

Each

Description

Pacific TII 7

Price (USD)

Request A Quote

Availability

***

Full specifications

Quantity

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	7 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 7
Permeate performance	7 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

Catalog Number

50132124

Unit Size

Each

Description

Pacific TII 12

Price (USD)

Request A Quote

Availability

***

Full specifications

Quantity

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	12 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 12
Permeate performance	12 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

Catalog Number

50132125

Unit Size

Each

Description

Pacific TII 20

Price (USD)

10,716.00

Your Price:

Availability

***

Full specifications

Quantity

Bacterial retention	99%
Conductivity	0.1 to 1.0μS/cm
Description	Pacific TII 20
Bacterial Content	99%
Daily Output	20 to 200 L
Feedwater Connector	3/4 in. NPT
Feed Water Monitoring	No
Feedwater Source	Tap
Flow Rate	20 L/hr. at 10°C
Product Water Type	Type 2
Resistivity	10 to 1 Mohm.cm at 25°C
TOC Monitor with UV Intensity Monitoring	No
Total Organic Carbon	<30 ppb
Type	Water Purification System
Feedwater Pressure	1 to 6 bar
Operating Pressure	2 to 6 bar
Particles >0.2µM/mL	<1 μM/mL
Permeate performance	20 L/hr. at 10°C
Temperature Range (Metric)	2°C to 35°C
Width (Metric)	372 mm
Height (Metric)	613 mm
Depth (Metric)	330 mm
Net Weight (Metric)	25 kg
Electrical Requirements	90/240 V 50/60 Hz
Voltage	90/240 V
Frequency	50/60 Hz
Unit Size	Each

Catalog Number

50132131

Unit Size

Description

Pacific TII 7 (UV)

Price (USD)

Request A Quote

Availability

***

Full specifications

Quantity

Bacterial retention	99%
Conductivity	0.1 to 1.0μS/cm
Description	Pacific TII 7 (UV)
Bacterial Content	99%
Daily Output	20 to 200 L
Feedwater Connector	3/4 in. NPT
Feed Water Monitoring	No
Feedwater Source	Tap
Flow Rate	7 L/hr. at 10°C
Product Water Type	Type 2
Resistivity	10 to 1 Mohm.cm at 25°C
TOC Monitor with UV Intensity Monitoring	No
Total Organic Carbon	<30 ppb
Type	Water Purification System
Feedwater Pressure	1 to 6 bar
Operating Pressure	2 to 6 bar
Particles >0.2µM/mL	<1 μM/mL
Permeate performance	7 L/hr. at 10°C
Temperature Range (Metric)	2°C to 35°C
Width (Metric)	372 mm
Height (Metric)	613 mm
Depth (Metric)	330 mm
Net Weight (Metric)	25 kg
Electrical Requirements	90/240 V 50/60 Hz
Voltage	90/240 V
Frequency	50/60 Hz
Unit Size	-

Catalog Number

50132132

Unit Size

Each

Description

Pacific TII 12 (UV)

Price (USD)

Request A Quote

Availability

***

Full specifications

Quantity

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	12 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 12 (UV)
Permeate performance	12 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

Showing 6 of 6

Catalog Number Specifications Unit Size Description Price (USD) Availability Quantity

50131982

Full specifications

Each

Pacific TII 20 (UV)

Request A Quote

***

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	20 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 20 (UV)
Permeate performance	20 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

50132123

Full specifications

Each

Pacific TII 7

Request A Quote

***

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	7 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 7
Permeate performance	7 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

50132124

Full specifications

Each

Pacific TII 12

Request A Quote

***

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	12 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 12
Permeate performance	12 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

50132125

Full specifications

Each

Pacific TII 20

10,716.00

Your Price:

***

Bacterial retention	99%
Conductivity	0.1 to 1.0μS/cm
Description	Pacific TII 20
Bacterial Content	99%
Daily Output	20 to 200 L
Feedwater Connector	3/4 in. NPT
Feed Water Monitoring	No
Feedwater Source	Tap
Flow Rate	20 L/hr. at 10°C
Product Water Type	Type 2
Resistivity	10 to 1 Mohm.cm at 25°C
TOC Monitor with UV Intensity Monitoring	No
Total Organic Carbon	<30 ppb
Type	Water Purification System
Feedwater Pressure	1 to 6 bar
Operating Pressure	2 to 6 bar
Particles >0.2µM/mL	<1 μM/mL
Permeate performance	20 L/hr. at 10°C
Temperature Range (Metric)	2°C to 35°C
Width (Metric)	372 mm
Height (Metric)	613 mm
Depth (Metric)	330 mm
Net Weight (Metric)	25 kg
Electrical Requirements	90/240 V 50/60 Hz
Voltage	90/240 V
Frequency	50/60 Hz
Unit Size	Each

50132131

Full specifications

Pacific TII 7 (UV)

Request A Quote

***

Bacterial retention	99%
Conductivity	0.1 to 1.0μS/cm
Description	Pacific TII 7 (UV)
Bacterial Content	99%
Daily Output	20 to 200 L
Feedwater Connector	3/4 in. NPT
Feed Water Monitoring	No
Feedwater Source	Tap
Flow Rate	7 L/hr. at 10°C
Product Water Type	Type 2
Resistivity	10 to 1 Mohm.cm at 25°C
TOC Monitor with UV Intensity Monitoring	No
Total Organic Carbon	<30 ppb
Type	Water Purification System
Feedwater Pressure	1 to 6 bar
Operating Pressure	2 to 6 bar
Particles >0.2µM/mL	<1 μM/mL
Permeate performance	7 L/hr. at 10°C
Temperature Range (Metric)	2°C to 35°C
Width (Metric)	372 mm
Height (Metric)	613 mm
Depth (Metric)	330 mm
Net Weight (Metric)	25 kg
Electrical Requirements	90/240 V 50/60 Hz
Voltage	90/240 V
Frequency	50/60 Hz
Unit Size	-

50132132

Full specifications

Each

Pacific TII 12 (UV)

Request A Quote

***

Frequency	50/60 Hz
Feedwater Connector	3/4 in. NPT
Product Water Type	Type 2
TOC Monitor with UV Intensity Monitoring	No
Type	Water Purification System
Resistivity	10 to 1 Mohm.cm at 25°C
Conductivity	0.1 to 1.0μS/cm
Daily Output	20 to 200 L
Feedwater Source	Tap
Flow Rate	12 L/hr. at 10°C
Total Organic Carbon	<30 ppb
Bacterial Content	99%
Particles >0.2µM/mL	<1 μM/mL
Feed Water Monitoring	No
Feedwater Pressure	1 to 6 bar
Height (Metric)	613 mm
Width (Metric)	372 mm
Net Weight (Metric)	25 kg
Operating Pressure	2 to 6 bar
Voltage	90/240 V
Temperature Range (Metric)	2°C to 35°C
Bacterial retention	99%
Depth (Metric)	330 mm
Description	Pacific TII 12 (UV)
Permeate performance	12 L/hr. at 10°C
Electrical Requirements	90/240 V 50/60 Hz
Unit Size	Each

Showing 6 of 6

Multiple Options for Type 2 water:

Five system options with permeate flows of 3, 7, 12, 20 or 40L/hr
Future system upgrades accommodate greater capacities to meet growing water demands
Space-saving design permits benchtop installation or wall mounting with integrated mounting bracket

Operational Reliability:

Microprocessor controlled for automatic operation with continuous monitoring of all critical parameters
Automatic return to “operating” mode ensures recirculation during standstill periods
UV lamp prevents biological contamination (UV models only)

Easy-to-Operate:

Resistivity/conductivity clearly displayed on large, back-lit control panel that tilts for optimum viewing
Status of current operating mode clearly indicating Production, Stand-by and Cleaning modes
Reservoir fill-level shown as %
System parameters are code-protected to prevent accidental changes to set points

GLP-Compliant Documentation:

Optional printer connects to RS-232 port for data recording and traceability
Cell constant of 0.01cm^-1 ensures precise conductivity measurements
Temperature compensation for the conductivity measurement has an accuracy of ±0.1°C (in conformity with USP 645)

Optional Hand Dispenser:

Gain increased flexibility by adding a hand dispenser with 3-meter cord which connects to tank; use only with a tank equipped with a pressure pump (06.5032, 06.5062, 06.5082). Ships with a 0.2 micron final filter (Part #50138221)

Warranty:1 year, parts and labor

Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.

Barnstead™ Pacific TII Water Purification System

Barnstead™ Pacific TII Water Purification System

Figures

Brands

Shopping Tools

eSolutions

Support

Thermo Fisher Scientific
