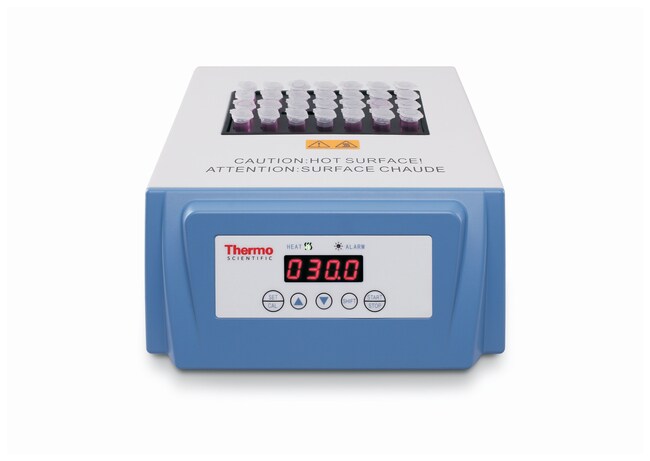

Thermo Scientific™

Digital Dry Baths/Block Heaters

Catalog number: 88870004
Thermo Scientific™

Digital Dry Baths/Block Heaters

Catalog number: 88870004
Increase lab versatility with the Thermo Scientific™ digital dry baths, which offer a range of configurations with interchangeable modular blocks for a variety of application needs. Designed for basic to advanced applications with a max temperature of 130°C, a timer and available in 1, 2 and 4 block sizes.

Catalog Number
88870004
Unit Size
Each
No. of Blocks
1 (order separately)
Heating Rate
≤ 20 min. 30° to 130°C
Voltage
200/240 V
Includes
Dry bath, CN, EU and UK plugs, block lifter
Price (USD)
Availability
***
Full specifications
Quantity
-
Plug TypeCN, EU and UK plugs
Voltage200/240 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)288 x 200 x 100 mm (11.3 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 2.5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, CN, EU and UK plugs, block lifter
Length (English)11.3 in.
Length (Metric)288 mm
No. of Blocks1 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)6.39 lb.
Weight (Metric)2.9 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
Catalog Number
Unit Size
Each
No. of Blocks
1 (order separately)
Heating Rate
≤ 20 min. 30° to 130°C
Voltage
100/120 V
Includes
Dry bath, US style plug, block lifter
Price (USD)
465.00
Online Offer: 339.45
(ends 31-Dec-2021)
Your Price:
Availability
***
Full specifications
Quantity
Plug TypeUS
Voltage100/120 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)288 x 200 x 100 mm (11.3 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 2.5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, US style plug, block lifter
Length (English)11.3 in.
Length (Metric)288 mm
No. of Blocks1 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)6.39 lb.
Weight (Metric)2.9 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
Catalog Number
Unit Size
Each
No. of Blocks
2 (order separately)
Heating Rate
≤ 20 min. 30° to 130°C
Voltage
100/120 V
Includes
Dry bath, US style plug, block lifter
Price (USD)
516.00
Your Price:
Availability
***
Full specifications
Quantity
Plug TypeUS
Voltage100/120 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)318 x 200 x 100 mm (12.5 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, US style plug, block lifter
Length (English)12.5 in.
Length (Metric)318 mm
No. of Blocks2 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)7.28 lb.
Weight (Metric)3.3 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
Catalog Number
Unit Size
Each
No. of Blocks
2 (order separately)
Heating Rate
≤ 20 min. 30° to 130°C
Voltage
200/240 V
Includes
Dry bath, CN, EU and UK plugs, block lifter
Price (USD)
Availability
***
Full specifications
Quantity
-
Plug TypeCN, EU and UK plugs
Voltage200/240 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)318 x 200 x 100 mm (12.5 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 2.5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, CN, EU and UK plugs, block lifter
Length (English)12.5 in.
Length (Metric)318 mm
No. of Blocks2 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)7.28 lb.
Weight (Metric)3.3 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
Catalog Number
Unit Size
Each
No. of Blocks
4 (order separately)
Heating Rate
≤ 25 min. 30° to 130°C
Voltage
100/120 V
Includes
Dry bath, US style plug, block lifter
Price (USD)
623.00
Your Price:
Availability
***
Full specifications
Quantity
Plug TypeUS
Voltage100/120 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)450 x 200 x 100 mm (17.7 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 8A
Frequency50/60 Hz
Heating Rate≤ 25 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, US style plug, block lifter
Length (English)17.7 in.
Length (Metric)450 mm
No. of Blocks4 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)10.36 lb.
Weight (Metric)4.7 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
Catalog Number
Unit Size
Each
No. of Blocks
4 (order separately)
Heating Rate
≤ 25 min. 30° to 130°C
Voltage
200/240 V
Includes
Dry bath, CN, EU and UK plugs, block lifter
Price (USD)
Availability
***
Full specifications
Quantity
-
Plug TypeCN, EU and UK plugs
Voltage200/240 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)450 x 200 x 100 mm (17.7 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 3.15A
Frequency50/60 Hz
Heating Rate≤ 25 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, CN, EU and UK plugs, block lifter
Length (English)17.7 in.
Length (Metric)450 mm
No. of Blocks4 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)10.36 lb.
Weight (Metric)4.7 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
Showing 6 of 6
Catalog NumberSpecificationsUnit SizeNo. of BlocksHeating RateVoltageIncludesPrice (USD)AvailabilityQuantity
88870004Full specifications
Each1 (order separately)≤ 20 min. 30° to 130°C200/240 VDry bath, CN, EU and UK plugs, block lifterRequest A Quote***-
Plug TypeCN, EU and UK plugs
Voltage200/240 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)288 x 200 x 100 mm (11.3 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 2.5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, CN, EU and UK plugs, block lifter
Length (English)11.3 in.
Length (Metric)288 mm
No. of Blocks1 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)6.39 lb.
Weight (Metric)2.9 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
88870001Full specifications
Each1 (order separately)≤ 20 min. 30° to 130°C100/120 VDry bath, US style plug, block lifter
465.00
Online Offer: 339.45
(ends 31-Dec-2021)
Your Price:
***
Plug TypeUS
Voltage100/120 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)288 x 200 x 100 mm (11.3 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 2.5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, US style plug, block lifter
Length (English)11.3 in.
Length (Metric)288 mm
No. of Blocks1 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)6.39 lb.
Weight (Metric)2.9 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
88870002Full specifications
Each2 (order separately)≤ 20 min. 30° to 130°C100/120 VDry bath, US style plug, block lifter
516.00
Your Price:
***
Plug TypeUS
Voltage100/120 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)318 x 200 x 100 mm (12.5 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, US style plug, block lifter
Length (English)12.5 in.
Length (Metric)318 mm
No. of Blocks2 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)7.28 lb.
Weight (Metric)3.3 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
88870005Full specifications
Each2 (order separately)≤ 20 min. 30° to 130°C200/240 VDry bath, CN, EU and UK plugs, block lifterRequest A Quote***-
Plug TypeCN, EU and UK plugs
Voltage200/240 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)318 x 200 x 100 mm (12.5 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 2.5A
Frequency50/60 Hz
Heating Rate≤ 20 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, CN, EU and UK plugs, block lifter
Length (English)12.5 in.
Length (Metric)318 mm
No. of Blocks2 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)7.28 lb.
Weight (Metric)3.3 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
88870003Full specifications
Each4 (order separately)≤ 25 min. 30° to 130°C100/120 VDry bath, US style plug, block lifter
623.00
Your Price:
***
Plug TypeUS
Voltage100/120 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)450 x 200 x 100 mm (17.7 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 8A
Frequency50/60 Hz
Heating Rate≤ 25 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, US style plug, block lifter
Length (English)17.7 in.
Length (Metric)450 mm
No. of Blocks4 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)10.36 lb.
Weight (Metric)4.7 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
88870006Full specifications
Each4 (order separately)≤ 25 min. 30° to 130°C200/240 VDry bath, CN, EU and UK plugs, block lifterRequest A Quote***-
Plug TypeCN, EU and UK plugs
Voltage200/240 V
Certifications/ComplianceCE, cULus, RoHS
Controller TypePID digital
Dimensions (L x W x H)450 x 200 x 100 mm (17.7 x 7.9 x 3.9 in.)
Temperature Range (Metric)Ambient +5°C to 130°C (Ambient at 25°C)
Relative Humidity<80%
MaterialPowder-coated Steel
Fuse250V 3.15A
Frequency50/60 Hz
Heating Rate≤ 25 min. 30° to 130°C
Height (English)3.9 in.
Height (Metric)100 mm
IncludesDry bath, CN, EU and UK plugs, block lifter
Length (English)17.7 in.
Length (Metric)450 mm
No. of Blocks4 (order separately)
Temperature Accuracy≤ ± 0.5°C
Temperature Uniformity≤ ± 1°C
Timer0 to 99:59 min or continuous
Warranty2 Year, Replacement
Weight (English)10.36 lb.
Weight (Metric)4.7 kg
Width (English)7.9 in.
Width (Metric)200 mm
LightingLED
TypeDry Bath/Block
Unit SizeEach
Showing 6 of 6
Thermo Scientific digital dry baths are available in a range of configurations to hold 1, 2 and 4 interchangeable modular blocks to accommodate a variety of vessels and applications.
  • Digital controls and display of time and temperature
  • Advanced internal temperature sensing probe for outstanding temperature accuracy and control
  • Precise temperature control with PID circuit
  • Temperature calibration allows the user to offset the temperature to desired value
  • Timer allows the user to accurately monitor the heating time
  • Wide range of interchangeable aluminum alloy heat blocks provide versatility and allow for easy cleaning and disinfecting
  • Powder-coated steel body construction ensures durability
  • Built-in over-temperature protection device ensures sample and user safety
  • Temperature deviation adjustment
Applications:
  • Sample preparation
  • Enzyme preservation
  • Enzyme-substrate reactions
  • DNA amplification
  • Electrophoresis gel degeneration
  • Serum coagulation
Required Accessory:
  • Unit must be ordered with block(s)
    Thermo Scientific digital dry baths are available in a range of configurations to hold 1, 2 and 4 interchangeable modular blocks to accommodate a variety of vessels and applications.
    • Digital controls and display of time and temperature
    • Advanced internal temperature sensing probe for outstanding temperature accuracy and control
    • Precise temperature control with PID circuit
    • Temperature calibration allows the user to offset the temperature to desired value
    • Timer allows the user to accurately monitor the heating time
    • Wide range of interchangeable aluminum alloy heat blocks provide versatility and allow for easy cleaning and disinfecting
    • Powder-coated steel body construction ensures durability
    • Built-in over-temperature protection device ensures sample and user safety
    • Temperature deviation adjustment
    Applications:
    • Sample preparation
    • Enzyme preservation
    • Enzyme-substrate reactions
    • DNA amplification
    • Electrophoresis gel degeneration
    • Serum coagulation
    Required Accessory:
    • Unit must be ordered with block(s)
Warranty: 2-year Thermo Fisher Scientific standard, limited warranty. Contact your sales representative for details. Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.

Figures

Frequently asked questions (FAQs)

Citations & References
