Thermo Scientific™

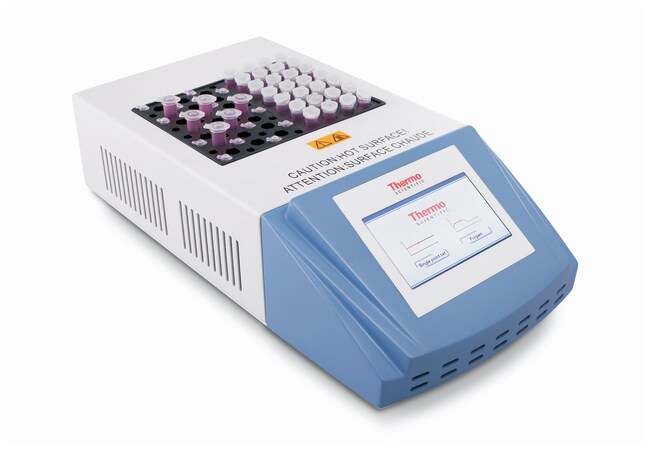

Touch Screen Dry Bath/Block Heater
Catalog number: 88870008
Thermo Scientific™
Touch Screen Dry Bath/Block Heater
Catalog number: 88870008
Designed to achieve precise temperature stability and uniformity with an easy-to-use touch screen controller. With 1, 2 and 4 block models, a broad range of heat blocks and a wide temperature range of ambient +5°C to 130°C, you’re sure to find the dry bath to fit your application demands. The Thermo Scientific™ Touch Screen Dry Bath/Block Heater includes advanced features such as a timer, programmability with the ability to save up to 10 programs with 5 steps per program, and an optional external temperature sensor to control the heat setting by a real time sample read out.
Catalog Number
88870008
Unit Size
Each
No. of Blocks
2 (must be ordered separately)
Voltage
100/120 V
Includes
Dry bath, US style plug, block lifter
Heating Rate
≤ 20 min. 30° to 130°C
Price (USD)
Price: 992.00
Your price:
Availability
-
Quantity
| Certifications/Compliance | CE, cULus, RoHS |
| Controller Type | PID digital |
| Lighting | LED |
| Material | Powder-coated Steel |
| Plug Type | US |
| Relative Humidity | <80% |
| Temperature Range (Metric) | Ambient +5° to 130°C (Ambient at 25°C) |
| Type | Dry Bath/Block |
| Fuse | 250V 5A |
| Heating Rate | ≤ 20 min. 30° to 130°C |
| Includes | Dry bath, US style plug, block lifter |
| No. of Blocks | 2 (must be ordered separately) |
| Temperature Accuracy | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ ± 1°C |
| Timer | 0 to 99:59 min or continuous |
| Warranty | 2 Year, Replacement |
| Dimensions (L x W x H) | 403 x 200 x 100 mm (15.9 x 7.9 x 3.9 in.) |
| Length (English) | 15.9 in. |
| Length (Metric) | 403 mm |
| Width (English) | 7.9 in. |
| Width (Metric) | 200 mm |
| Height (English) | 3.9 in. |
| Height (Metric) | 100 mm |
| Weight (English) | 8.16 lb. |
| Weight (Metric) | 3.7 kg |
| Voltage | 100/120 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
Catalog Number
Unit Size
Each
No. of Blocks
1 (order separately)
Voltage
100/120 V
Includes
Dry bath, US style plug, block lifter
Heating Rate
≤ 20 min. 30° to 130°C
Price (USD)
Price: 872.00
Your price:
Availability
-
Quantity
| Certifications/Compliance | CE, cULus, RoHS |
| Controller Type | PID digital |
| Lighting | LED |
| Material | Powder-coated Steel |
| Plug Type | US |
| Relative Humidity | <80% |
| Temperature Range (Metric) | Ambient +5° to 130°C (Ambient at 25°C) |
| Type | Dry Bath/Block |
| Fuse | 250 V 2.5A |
| Heating Rate | ≤ 20 min. 30° to 130°C |
| Includes | Dry bath, US style plug, block lifter |
| No. of Blocks | 1 (order separately) |
| Temperature Accuracy | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ ± 1°C |
| Timer | 0 to 99:59 min or continuous |
| Warranty | 2 Year, Replacement |
| Dimensions (L x W x H) | 373 x 200 x 100 mm (14.7 x 7.9 x 3.9 in.) |
| Length (English) | 14.7 in. |
| Length (Metric) | 373 mm |
| Width (English) | 7.9 in. |
| Width (Metric) | 200 mm |
| Height (English) | 3.9 in. |
| Height (Metric) | 100 mm |
| Weight (English) | 7.5 lb. |
| Weight (Metric) | 3.4 kg |
| Voltage | 100/120 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
Catalog Number
Unit Size
Each
No. of Blocks
1 (order separately)
Voltage
200/240 V
Includes
Dry bath, CN, EU and UK plugs, block lifter
Heating Rate
≤ 20 min. 30° to 130°C
Price (USD)
Availability
-
Quantity
-
| Certifications/Compliance | CE, cULus, RoHS |
| Controller Type | PID digital |
| Lighting | LED |
| Material | Powder-coated Steel |
| Plug Type | CN, EU, UK |
| Relative Humidity | <80% |
| Temperature Range (Metric) | Ambient +5° to 130°C (Ambient at 25°C) |
| Type | Dry Bath/Block |
| Fuse | 250V 2.5A |
| Heating Rate | ≤ 20 min. 30° to 130°C |
| Includes | Dry bath, CN, EU and UK plugs, block lifter |
| No. of Blocks | 1 (order separately) |
| Temperature Accuracy | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ ± 1°C |
| Timer | 0 to 99:59 min or continuous |
| Warranty | 2 Year, Replacement |
| Dimensions (L x W x H) | 373 x 200 x 100 mm (14.7 x 7.9 x 3.9 in.) |
| Length (English) | 14.7 in. |
| Length (Metric) | 373 mm |
| Width (English) | 7.9 in. |
| Width (Metric) | 200 mm |
| Height (English) | 3.9 in. |
| Height (Metric) | 100 mm |
| Weight (English) | 7.5 lb. |
| Weight (Metric) | 3.4 kg |
| Voltage | 200/240 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
Catalog Number
Unit Size
Each
No. of Blocks
2 (must be ordered separately)
Voltage
200/240 V
Includes
Dry bath, CN, EU and UK plugs, block lifter
Heating Rate
≤ 20 min. 30° to 130°C
Price (USD)
Availability
-
Quantity
-
| Certifications/Compliance | CE, cULus, RoHS |
| Controller Type | PID digital |
| Lighting | LED |
| Material | Powder-coated Steel |
| Plug Type | CN, EU, UK |
| Relative Humidity | <80% |
| Temperature Range (Metric) | Ambient +5° to 130°C (Ambient at 25°C) |
| Type | Dry Bath/Block |
| Fuse | 250V 2.5A |
| Heating Rate | ≤ 20 min. 30° to 130°C |
| Includes | Dry bath, CN, EU and UK plugs, block lifter |
| No. of Blocks | 2 (must be ordered separately) |
| Temperature Accuracy | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ ± 1°C |
| Timer | 0 to 99:59 min or continuous |
| Warranty | 2 Year, Replacement |
| Dimensions (L x W x H) | 403 x 200 x 100 mm (15.9 x 7.9 x 3.9 in.) |
| Length (English) | 15.9 in. |
| Length (Metric) | 403 mm |
| Width (English) | 7.9 in. |
| Width (Metric) | 200 mm |
| Height (English) | 3.9 in. |
| Height (Metric) | 100 mm |
| Weight (English) | 8.16 lb. |
| Weight (Metric) | 3.7 kg |
| Voltage | 200/240 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
Catalog Number
Unit Size
Each
No. of Blocks
4 (must be ordered separately)
Voltage
100/120 V
Includes
Dry bath, US style plug, block lifter
Heating Rate
≤ 25 min. 30° to 130°C
Price (USD)
Price: 1,220.00
Your price:
Availability
-
Quantity
| Certifications/Compliance | CE, cULus, RoHS |
| Controller Type | PID digital |
| Lighting | LED |
| Material | Powder-coated Steel |
| Plug Type | US |
| Relative Humidity | <80% |
| Temperature Range (Metric) | Ambient +5° to 130°C (Ambient at 25°C) |
| Type | Dry Bath/Block |
| Fuse | 250V 8A |
| Heating Rate | ≤ 25 min. 30° to 130°C |
| Includes | Dry bath, US style plug, block lifter |
| No. of Blocks | 4 (must be ordered separately) |
| Temperature Accuracy | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ ± 1°C |
| Timer | 0 to 99:59 min or continuous |
| Warranty | 2 Year, Replacement |
| Dimensions (L x W x H) | 535 x 200 x 100 mm (21.1 x 7.9 x 3.9 in.) |
| Length (English) | 21.1 in. |
| Length (Metric) | 535 mm |
| Width (English) | 7.9 in. |
| Width (Metric) | 200 mm |
| Height (English) | 3.9 in. |
| Height (Metric) | 100 mm |
| Weight (English) | 11.24 lb. |
| Weight (Metric) | 5.1 kg |
| Voltage | 100/120 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
Catalog Number
Unit Size
Each
No. of Blocks
4 (must be ordered separately)
Voltage
200/240 V
Includes
Dry bath, CN, EU and UK plugs, block lifter
Heating Rate
≤ 25 min. 30° to 130°C
Price (USD)
Availability
-
Quantity
-
| Certifications/Compliance | CE, cULus, RoHS |
| Controller Type | PID digital |
| Lighting | LED |
| Material | Powder-coated Steel |
| Plug Type | CN, EU, UK |
| Relative Humidity | <80% |
| Temperature Range (Metric) | Ambient +5° to 130°C (Ambient at 25°C) |
| Type | Dry Bath/Block |
| Fuse | 250V 3.15A |
| Heating Rate | ≤ 25 min. 30° to 130°C |
| Includes | Dry bath, CN, EU and UK plugs, block lifter |
| No. of Blocks | 4 (must be ordered separately) |
| Temperature Accuracy | ≤ ± 0.5°C |
| Temperature Uniformity | ≤ ± 1°C |
| Timer | 0 to 99:59 min or continuous |
| Warranty | 2 Year, Replacement |
| Dimensions (L x W x H) | 535 x 200 x 100 mm (21.1 x 7.9 x 3.9 in.) |
| Length (English) | 21.1 in. |
| Length (Metric) | 535 mm |
| Width (English) | 7.9 in. |
| Width (Metric) | 200 mm |
| Height (English) | 3.9 in. |
| Height (Metric) | 100 mm |
| Weight (English) | 11.24 lb. |
| Weight (Metric) | 5.1 kg |
| Voltage | 200/240 V |
| Frequency | 50/60 Hz |
| Unit Size | Each |
Showing 6 of 6
| Catalog Number | Specifications | Unit Size | No. of Blocks | Voltage | Includes | Heating Rate | Price (USD) | Availability | Quantity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 88870008 | Each | 2 (must be ordered separately) | 100/120 V | Dry bath, US style plug, block lifter | ≤ 20 min. 30° to 130°C | Price: 992.00 Your price: | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 88870007 | Each | 1 (order separately) | 100/120 V | Dry bath, US style plug, block lifter | ≤ 20 min. 30° to 130°C | Price: 872.00 Your price: | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 88870010 | Each | 1 (order separately) | 200/240 V | Dry bath, CN, EU and UK plugs, block lifter | ≤ 20 min. 30° to 130°C | Request A Quote | - | - | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 88870011 | Each | 2 (must be ordered separately) | 200/240 V | Dry bath, CN, EU and UK plugs, block lifter | ≤ 20 min. 30° to 130°C | Request A Quote | - | - | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 88870009 | Each | 4 (must be ordered separately) | 100/120 V | Dry bath, US style plug, block lifter | ≤ 25 min. 30° to 130°C | Price: 1,220.00 Your price: | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 88870012 | Each | 4 (must be ordered separately) | 200/240 V | Dry bath, CN, EU and UK plugs, block lifter | ≤ 25 min. 30° to 130°C | Request A Quote | - | - | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
- Advanced internal temperature sensing probe with outstanding temperature accuracy and control
- Temperature deviation adjustment
- Precise temperature control with PID circuit
- Temperature self-calibration enables user to offset the temperature to desired value
- Timer enables the user to accurately monitor the heating time
- Password protection feature
- Interchangeable aluminum alloy sample blocks designed to provide versatility, easy cleaning and disinfecting
- Range of configuration to hold 1, 2 and 4 interchangeable modular blocks to accommodate a variety of vessels and applications
- Powder-coated steel body construction ensures durability
- When the external temperature sensor is connected, the internal temperature sensor will disconnect automatically, allowing the temperature control and display to rely on the external temperature sensor
- Easy-to-use touch screen control displays time and temperature
- 10 user setting programs, each supports up to 5 sequential steps of different temperatures and duration times
- Built-in over temperature protection device for added safety
Applications:
- Sample preparation
- Enzyme preservation
- Enzyme-substrate reactions
- DNA amplification
- Electrophoresis gel degeneration
- Serum coagulation
- Unit must be ordered with block(s)
Warranty: 2-year Thermo Fisher Scientific standard, limited warranty. Contact your sales representative for details. Disclaimer to internal research use restriction: Any restrictions on the purchaser to utilize the product(s) for internal research purposes only does not apply to the product(s) on the web pages associated with this statement.
