Thermo Scientific™

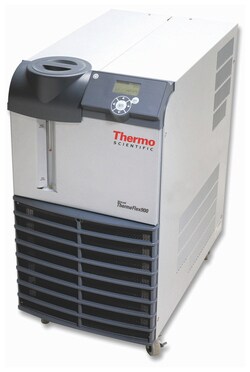

ThermoFlex™ Recirculating Chillers
Catalog number: TF900
Thermo Scientific™
ThermoFlex™ Recirculating Chillers
Catalog number: TF900
Optimized for the most demanding applications, Thermo Scientific™ ThermoFlex Recirculating Chillers are reliable, easy-to-use and easy-to-maintain. The ThermoFlex platform was developed with customer input from concept to design. This high-performance chiller platform, with cooling capacity up to 24,000 watts (81,948 btu/hr), is configurable to meet application demands.
ThermoFlex Chillers are now available in low noise select models. Quiet performance (<58 dBA) promotes a safe and reduced stress environment in your lab. These low noise models are designed to remain quiet over the entire operating range of the chiller while maintaining temperature control accuracy.
Catalog Number
TF900
Unit Size
Each
Description
ThermoFlex 900 Recirculating Chiller
Cooling Capacity
Up to 900 watts (60Hz) 750 watts (50Hz)
Temperature Range
5°C to 40°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | ThermoFlex 900 Recirculating Chiller |
| Certifications/Compliance | CE, CSA |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled |
| Cooling Capacity | Up to 900 watts (60Hz) 750 watts (50Hz) |
| Temperature Range | 5°C to 40°C |
| Pump Capacity | Up to 3.3 gpm @ 60 psig (12.5 L/min. @ 4.1 bar) (50Hz) Up to 4.0 gpm @ 60 psig (15. |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
Low Noise ThermoFlex 900 Recirculating Chiller
Cooling Capacity
Up to 900 watts (60Hz) 750 watts (50Hz)
Temperature Range
5°C to 40°C
Price (USD)
| Configuration Options | Fluid Filtration (included) |
| Description | Low Noise ThermoFlex 900 Recirculating Chiller |
| Certifications/Compliance | CE, CSA |
| Communications | Analog & Digital (included) |
| Condenser Type | Air Cooled |
| Cooling Capacity | Up to 900 watts (60Hz) 750 watts (50Hz) |
| Temperature Range | 5°C to 40°C |
| Noise Level | <58 dBA |
| Pump Capacity | Up to 3.3 gpm @ 60 psig (12.5 L/min. @ 4.1 bar) (50Hz); Up to 4.0 gpm @ 60 psig (15.1 L/min. @ 4.1 b |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
ThermoFlex 1400 Recirculating Chiller
Cooling Capacity
Up to 1,400 watts (60Hz) 1,170 watts (50Hz)
Temperature Range
5°C to 90°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | ThermoFlex 1400 Recirculating Chiller |
| Certifications/Compliance | CE, CSA Semi S2 |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 1,400 watts (60Hz) 1,170 watts (50Hz) |
| Temperature Range | 5°C to 90°C |
| Pump Capacity | Up to 3.3 gpm @ 60 psig (12.5 L/min. @ 4.1 bar) (50Hz) Up to 4.0 gpm @ 60 psig (15.1 L/min. @ 4 |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
Low Noise ThermoFlex 1400 Recirculating Chiller
Cooling Capacity
Up to 1,400 watts (60Hz) 1,170 watts (50Hz)
Temperature Range
5°C to 40°C
Price (USD)
| Configuration Options | Fluid Filtration (included) |
| Description | Low Noise ThermoFlex 1400 Recirculating Chiller |
| Certifications/Compliance | CE, CSA |
| Communications | Analog & Digital (included) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 1,400 watts (60Hz) 1,170 watts (50Hz) |
| Temperature Range | 5°C to 40°C |
| Noise Level | <58 dBA |
| Pump Capacity | Up to 3.3 gpm @ 60 psig (12.5 L/min. @ 4.1 bar) (50Hz); Up to 4.0 gpm @ 60 psig (15.1 L/min. @ 4.1 b |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
ThermoFlex 2500 Recirculating Chiller
Cooling Capacity
Up to 2,500 watts (60Hz) 2,200 watts (50Hz)
Temperature Range
5°C to 90°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | ThermoFlex 2500 Recirculating Chiller |
| Certifications/Compliance | CE, CSA Semi S2 |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 2,500 watts (60Hz) 2,200 watts (50Hz) |
| Temperature Range | 5°C to 90°C |
| Pump Capacity | Up to 3.3 gpm @ 60 psig (12.5 L/min. @ 4.1 bar) (50Hz) Up to 4.0 gpm @ 60 psig (15. |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
ThermoFlex 3500 Recirculating Chiller
Cooling Capacity
Up to 3,500 watts (60Hz) 3,050 watts (50Hz)
Temperature Range
5°C to 90°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | ThermoFlex 3500 Recirculating Chiller |
| Certifications/Compliance | CE, CSA Semi S2 |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 3,500 watts (60Hz) 3,050 watts (50Hz) |
| Temperature Range | 5°C to 90°C |
| Pump Capacity | Up to 15 gpm @ 34 psig (56.8 L/min. @ 2.3 bar) (50Hz) Up to 15 gpm @ 57 psig (56.8 |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
ThermoFlex 5000 Recirculating Chiller
Cooling Capacity
Up to 5,000 watts (60Hz) 4,400 watts (50Hz)
Temperature Range
5°C to 90°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | ThermoFlex 5000 Recirculating Chiller |
| Certifications/Compliance | CE, CSA Semi S2 |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 5,000 watts (60Hz) 4,400 watts (50Hz) |
| Temperature Range | 5°C to 90°C |
| Pump Capacity | Up to 15 gpm @ 34 psig (56.8 L/min. @ 2.3 bar) (50Hz) Up to 15 gpm @ 57 psig (56.8 |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
ThermoFlex 7500 Recirculating Chiller
Cooling Capacity
Up to 7,500 watts (60Hz) 6,425 watts (50Hz)
Temperature Range
5°C to 90°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | ThermoFlex 7500 Recirculating Chiller |
| Certifications/Compliance | CE, CSA Semi S2 |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 7,500 watts (60Hz) 6,425 watts (50Hz) |
| Temperature Range | 5°C to 90°C |
| Pump Capacity | Up to 20 gpm @ 35 psig (75.7 L/min. @ 2.4 bar) (50Hz) Up to 20 gpm @ 60 psig (75.7 L/min. @ 4 |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
ThermoFlex 10000 Recirculating Chiller
Cooling Capacity
Up to 10,000 watts (60Hz) 8,500 watts (50Hz)
Temperature Range
5°C to 90°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | ThermoFlex 10000 Recirculating Chiller |
| Certifications/Compliance | CE, CSA Semi S2 |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 10,000 watts (60Hz) 8,500 watts (50Hz) |
| Temperature Range | 5°C to 90°C |
| Pump Capacity | Up to 20 gpm @ 35 psig (75.7 L/min. @ 2.4 bar) (50Hz) Up to 20 gpm @ 60 psig (75.7 L/min. @ 4 |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Catalog Number
Unit Size
Each
Description
New T9 Pump. ThermoFlex 15000 Recirculating Chiller
Cooling Capacity
Up to 15,000 watts (60Hz) 12,525 watts (50Hz)
Temperature Range
5°C to 40°C
Price (USD)
| Configuration Options | Fluid Filtration (included), DI Support (Available), Auto Refill (Available), Flow Control with Readout (Available) |
| Description | New T9 Pump. ThermoFlex 15000 Recirculating Chiller |
| Certifications/Compliance | CE, CSA Semi S2 |
| Communications | Analog & Digital (available) |
| Condenser Type | Air Cooled or Water Cooled |
| Cooling Capacity | Up to 15,000 watts (60Hz) 12,525 watts (50Hz) |
| Temperature Range | 5°C to 40°C |
| Pump Capacity | Up to 20 gpm @ 35 psig (75.7 L/min. @ 2.4 bar) (50Hz) Up to 20 gpm @ 60 psig (75.7 L/min. @ 4 |
| Temperature Stability | ±0.1°C |
| Unit Size | Each |
Showing 10 of 12Show more
| Catalog Number | Specifications | Unit Size | Description | Cooling Capacity | Temperature Range | Price (USD) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TF900 | Each | ThermoFlex 900 Recirculating Chiller | Up to 900 watts (60Hz) 750 watts (50Hz) | 5°C to 40°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF900-LN | Each | Low Noise ThermoFlex 900 Recirculating Chiller | Up to 900 watts (60Hz) 750 watts (50Hz) | 5°C to 40°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF1400 | Each | ThermoFlex 1400 Recirculating Chiller | Up to 1,400 watts (60Hz) 1,170 watts (50Hz) | 5°C to 90°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF1400-LN | Each | Low Noise ThermoFlex 1400 Recirculating Chiller | Up to 1,400 watts (60Hz) 1,170 watts (50Hz) | 5°C to 40°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF2500 | Each | ThermoFlex 2500 Recirculating Chiller | Up to 2,500 watts (60Hz) 2,200 watts (50Hz) | 5°C to 90°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF3500 | Each | ThermoFlex 3500 Recirculating Chiller | Up to 3,500 watts (60Hz) 3,050 watts (50Hz) | 5°C to 90°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF5000 | Each | ThermoFlex 5000 Recirculating Chiller | Up to 5,000 watts (60Hz) 4,400 watts (50Hz) | 5°C to 90°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF7500 | Each | ThermoFlex 7500 Recirculating Chiller | Up to 7,500 watts (60Hz) 6,425 watts (50Hz) | 5°C to 90°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF10000 | Each | ThermoFlex 10000 Recirculating Chiller | Up to 10,000 watts (60Hz) 8,500 watts (50Hz) | 5°C to 90°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TF15000 | Each | New T9 Pump. ThermoFlex 15000 Recirculating Chiller | Up to 15,000 watts (60Hz) 12,525 watts (50Hz) | 5°C to 40°C | Request A Quote | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*Now available in low-noise: less than 58 dBA
Ease of Use
- An intuitive user interface for ease of operation
- Air and water filters that can be changed while unit is in operation
- Innovative packaging for rapid installation
- Quick start guide enables trouble-free system start-up
Superior Performance
- Improved cooling capacity
- Increased reliability
- Ease of maintenance
Configurable Design
- Wide range of available cooling capacities
- Variety of available options
- Installation flexibility
Recommended for:
- Aerospace
- Analytical
- Biotech
- Chemical
- Industrial
- Medical
- Pharmaceutical
- Research
- University
